VSC-SDI-HDMI: 3G-SDI/HD-SDI to HDMI

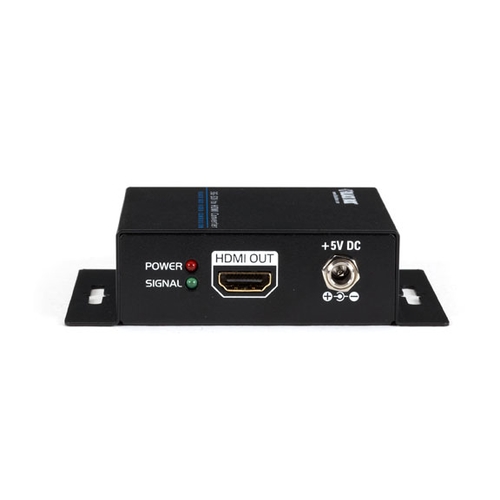

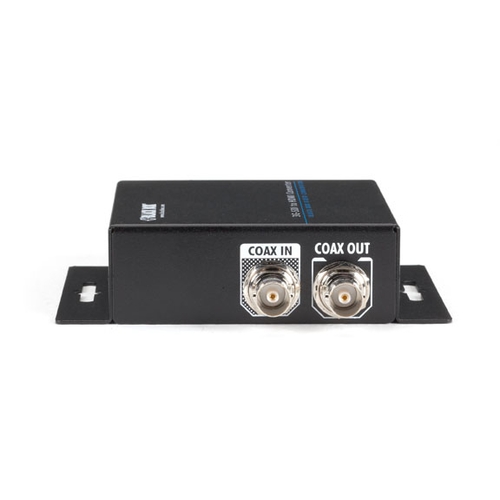

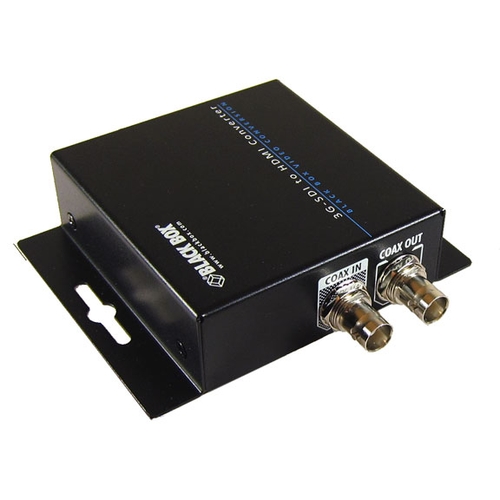

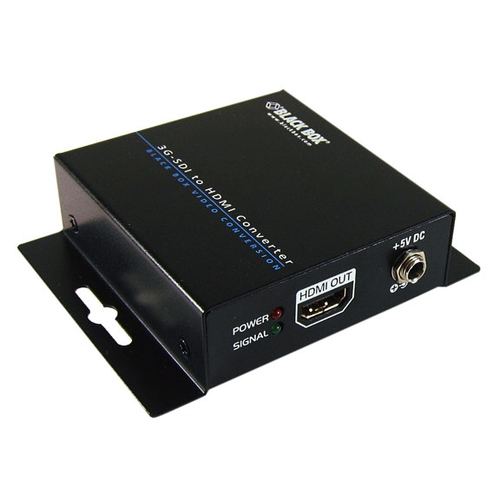

Photo may vary from actual product
3G-SDI/HD-SDI to HDMI Converter
VSC-SDI-HDMI: 3G-SDI/HD-SDI to HDMI
VSC-SDI-HDMI: 3G-SDI/HD-SDI to HDMI


3G-SDI/HD-SDI to HDMI Converter


A low-cost way to use a standard HDMI screen instead of a pricey SDI display for SDI monitoring.


  • Converts serial digital interface video for output to an HDMI® display.
  • Supports 3G-SDI (3 Gbps), HD-SDI, and SD-SDI input on coax BNC.
  • Save money by using a low cost HDMI display to preview a high-end broadcasting SDI signal.
  • Also has SDI loopout for a local SDI monitor or daisychaining.
  • Handles latest SDI standards with bit rates of 2.97 Gbps (3G-SDI/SMTPE 424M).
  • Re-clocks SDI data for low-jitter video output.
  • No software or driver installation required.
  • Wall-mountable for space-saving installation.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code


3G-SDI/HD-SDI to HDMI
  3G-SDI/HD-SDI to HDMI Converter
3G-SDI/HD-SDI to HDMI Converter
  VSC-SDI-HDMI

Accessories

  Product     Code

Power Supply
  5V Locking Replacement Power Supply, 4 Amp
5V Locking Replacement Power Supply, 4 Amp
  VX-L5V4A-PS

Essential for any professional video and broadcast engineering application, this handy converter enables you to connect a 3G-SDI, HD-SDI, or SD-SDI source for output on an HDMI display. This way, you can repurpose an ordinary LCD for video monitoring in your SDI setup.

The affordably priced device autodetects SDI video standard on its 75-ohm coax input and provides digitally pure SDI-to-HDMI conversion, ensuring no loss in the conversion for both video and audio signaling.


Applications
Use it in a TV studio, post-production, digital cinema, or AV application where you need to show uncompressed digital video from professional video equipment on a consumer-grade HDTV.

SDI loopback
Even better, it features SDI loopout via a second coax connector. This way you can display a 3G-SDI signal from a camera on an HDMI panel while simultaneously outputting the 3G-SDI signal to a second SDI device for local monitoring. Or use the loopout to daisychain to additional SDI equipment.

Audio
The 3G-SDI/HD-SDI to HDMI Converter processes up to eight channels of audio, including 7.1-channel or 5.1-channel audio in addition to HDMI video. If your SDI source device supplies multiple channels of surround sound or Dolby® TrueHD audio, for example, the converter outputs the same number of channels for the HDMI connector’s pinning.

Bit Rates
For both older and newer SDI interfaces, the converter processes bit rates from 270 Mbps up to 2.97 Gbps.

Distance
Cable equalization helps compensate for loss when connecting the converter to an SDI source at maximum standard distances* .

  • NOTE: Distance depends on the characteristics and quality of the cable and the type of SDI source. Cable equalization supports maximum distances of 300 feet (90 m) for 3G-SDI; 500 feet (150 m) for HD-SDI; and 1000 feet (300 m) for SD-SDI.
