AVX-HDMI2-FO-HDB: 300m, Extender Kit, (1) HDMI
Photo may vary from actual product
AVX-HDMI2-FO-HDB: 300m, Extender Kit, (1) HDMI
AVX-HDMI2-FO-HDB: 300m, Extender Kit, (1) HDMI
AVX-HDMI2-FO-HDB: 300m, Extender Kit, (1) HDMI


HDMI 2.0 Extender over Fiber


Distribute UHD video, audio, RS232 or IR together up to 300-m over fiber optic cable.


  • Supports up to 4K @ 60 4:4:4 8 bit HDMI signal transmission.
  • Locking HDMI ports prevent accidental cable disconnections.
  • HDCP 2.2 compliant.
  • Supports HDR.
  • Transmits 4K @ 60 4:4:4 signals up to 300m over multimode OM3 cable with 10 Gbps multimode. SFP+ modules (SFP+ modules are included).
  • Video transmission is compressed when the data rate is above 3 Gbps (e.g. 4K @ 60 Hz 4:4:4).
  • Supports bi-directional IR or RS232 passthrough to allow different types of displays or sources.
  • Multichannel audio supports up to PCM 7.1, DTS Master HD and Dolby True HD.
  • Locking DC power plugs.

  Product       Code
300m
Extender Kit
(1) HDMI

Variation: -
  HDMI 2.0 Extender over Fiber
HDMI 2.0 Extender over Fiber
  AVX-HDMI2-FO-HDB

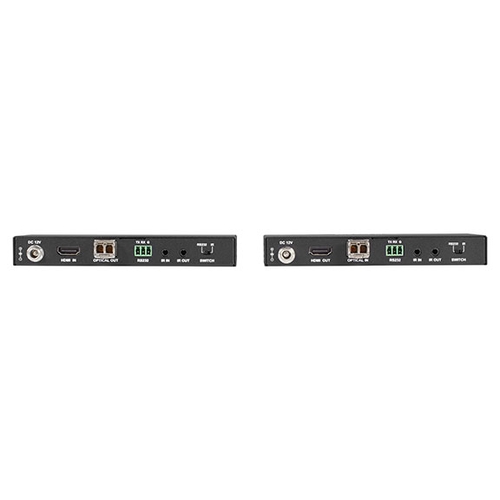

Send higher-quality video and audio signals further with this HDMI 2.0 Extender. This extender kit distributes UHD video, audio, RS232 or IR up to 300 meters over fiber optic cable. The bi-directional RS-232 or IR ports to control AV devices are easy to choose by the slide switch on the rear panels. Control sources and displays from either the transmitter or receiver end using either RS232 or IR signals. The extender supports duplex fiber up to 300 meters.

Extend signals over duplex fiber up to 300 meters while maintaining:

  • Higher resolutions
  • Higher frame rates
  • Multiple full HD streams in the same pipe
  • 21:9 aspect ratio
