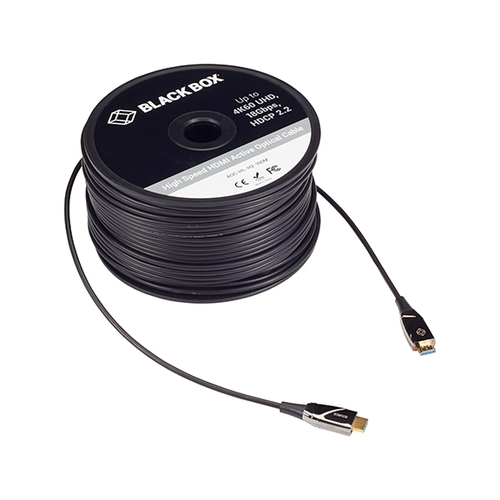

AOC-HL-H2-10M-R2: HDMI, 10m
Photo may vary from actual product
AOC-HL-H2-100M: HDMI, 100m


HDMI 2.0 Active Optical Cable, LSZH

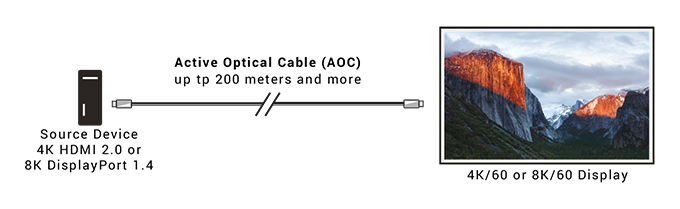

Flawlessly transmit 4K60 HDMI signals up to 200 metres


  • Supports HDMI 2.0 (source) input and HDMI 2.0 (Display) output.
  • Extend full 4096 x 2160 / 3840 x 2160 (4K) @ 60Hz 4:4:4 video signals up to 200m.
  • Ultra-high-bandwidth data transfer up to 18 Gbps Support EDID/CEC/DDC
  • Fully supports HDMI 2.0 spec, including ARC, 21:9 Aspect Ratio and more
  • Supports HDCP 2.2 / EDID / DDC / CEC
  • High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy.
  • Supports delivery of dual video streams to a display (if supported by display).
  • 21:9 Cinema aspect ratio.
  • Supports BT.2020 colorimetry.
  • PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
  • Practically Zero EMI/RFI profile for flawless performance
  • Hybrid fiber/copper design requires no external power
  • Plug and play, no software to be installed.

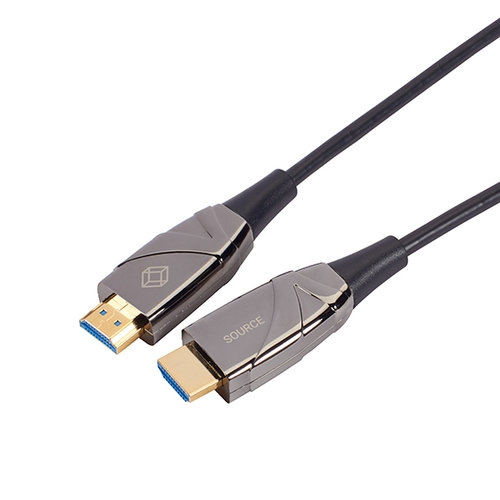

  • Gold-plated, zinc alloy HDMI connectors ensure optimal performance and enhanced durability
  • Ultra-thin, flexible cabling makes it easy to pull through tight spaces and navigate corners and bends with low risk of signal loss.
  • Triple-shielding further protects against interference to ensure optimal signal quality.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI

10m
  HDMI 2.0 Active Optical Cable, LSZH
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-10M-R2

15m
  HDMI 2.0 Active Optical Cable, LSZH
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-15M-R2

30m
  HDMI 2.0 Active Optical Cable, LSZH
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-30M-R2

50m
  HDMI 2.0 Active Optical Cable, LSZH
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-50M-R2

100m
  HDMI 2.0 Active Optical Cable, LSZH
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-100M Last Time Buy
"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items. Active Optical Cables up to 100m are stocked, please call us for larger lengths up to 200m.

Accessories

  Product     Code

  USB 1.1 Extender - CATx, 2-Port - USB 1.1 & USB 2.0, 85m, 2 port
USB 1.1 Extender - CATx, 2-Port
  IC282A
  USB 2.0 Ultimate Extender over CATx - USB 1.1 & USB 2.0, 100m, 4 ports
USB 2.0 Ultimate Extender over CATx
  IC400A-R2
  DP 1.2 to HDMI 2.0 Adapter, active - Active Video Adapter, DisplayPort 1.2 to HDMI 2.0, M/F, 20.3 cm
DP 1.2 to HDMI 2.0 Adapter, active
  VA-DP12-HDMI4K-A-R2

Expansive Bandwidth for Long Distance UHD Transmission
Fibre-optic technology allows Active Optical Cables to transmit ultra-high-bandwidth data signals over distances that copper cannot. Copper cables struggle to transmit 4K60 a standard 5 meters, and only then with a bulky, inflexible construction. To achieve longer distances, copper solutions need to switch to modular transmitter/receiver extenders, while all-in-one AOC cables can easily support HDMI 2.0 bandwidths of 18 Gbps over hundreds of meters.

Outstanding Video Quality
High-end AV applications today don’t just need the best video resolutions available, but a solution that can display them while also providing all of the features necessary to support their content. Active Optical Cables can do just that, providing 4K60 video resolutions while also supporting the full feature set of the HDMI 2.0 specification. They deliver high-dynamic-range (HDR) video for expansive contrast ratio and color accuracy, while also supporting HDCP 2.2 content protection which is necessary to display the latest content. Also supported are BT.2020 colorimetry and 21:9 cinema aspect ratio, as well as EDID, CEC, DDC, and more, making active optical a full featured solution for professional AV installs.

Amazing Audio Quality
Active Optical Cable also provides immersive audio that is essential for AV applications. These cables support PCM 8-Channel, DTS-HD and Dolby Digital True HD Surround Sound audio for theater quality sound. Additionally, they can transmit up to 32 audio channels with 1536-KHz sampling rate as well as features such as HDMI’s Audio Return Channel (ARC) and more.

Plug and Play, Premium Reliability
There is no software, external power or additional hardware needed for an AOC to work. To install an Active Optical Cable, a technician simply connects it to a source and a display - nothing more. No expert training or guidance needed. It’s as easy as installing a common HDMI cable at home. This simple, all-in-one cable solution also provides premium reliability when compared with alternative solutions. To achieve the same high-bandwidth transmission and extended distance, you would have to utilize an over CATx or over fibre extender kit. These kits are costly, and require transmitter and receiver units, in addition to the potential points of failure that come with them. With AOC’s, you simply plug and play like an ordinary cable, leaving it to reliably transmit your audio/video signal without interruption.

Flexible, Thin and Light
Active Optical Cables are much thinner than traditional copper cable, which lets them easily fit behind today’s ultra-thin displays. These cables also have a superior bend radius that makes routing them through tight spaces easy and decreases the risk of poor performance when navigating cable around corners and bends. This is especially helpful in AV applications that must connect many sources and displays, like video walls. Video walls require many cables to be routed through the same area, which can cause clutter. Because AOCs are much thinner and more flexible than copper cables, they keep the video wall setup neater and less cluttered. On top of that, Active Optical Cables are much lighter than copper solutions: Five meters of copper cabling weighs approximately one kilogram, whereas 10 meters of AOC weighs less than 300 grams. This makes pulling AOCs through ceilings and walls much easier and less likely to result in costly damage.

Minimal RFI/EMI Profile
Copper cable is prone to electromagnetic interference, which can disrupt signal quality, data transmission and connectivity. Active Optical Cables have a much lower RFI/EMI profile because they are made of fibre. This makes AOC ideal for fragile or more delicate applications, like control room, healthcare and transportation, which cannot tolerate any signal downtime or interruption. Additionally, the triple shielding of these cables further guards them against interference to ensure the best signal quality at all times.
