HDMI 2.0 Extender over CATx

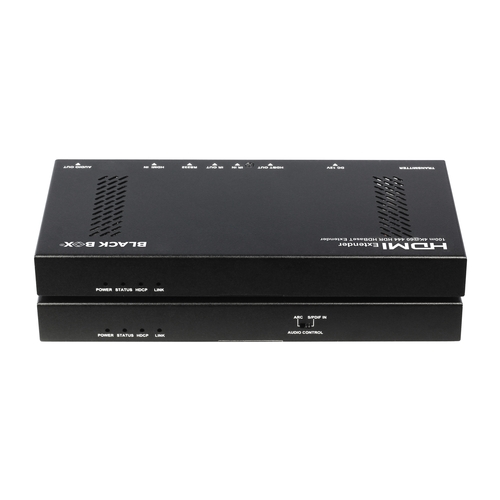

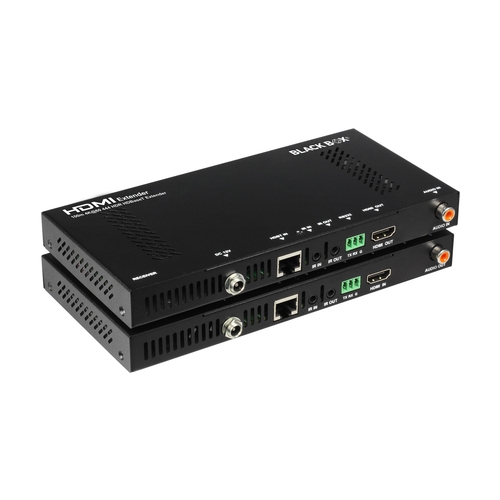

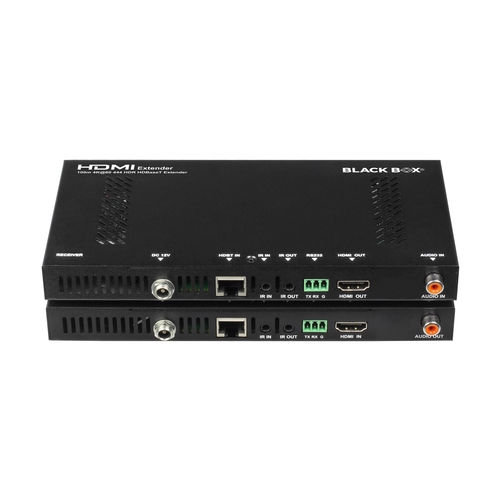

Photo may vary from actual product
AVX-HDMI2-HDB-R2: (1) HDMI, 70m, Kit
AVX-HDMI2-HDB-R2: (1) HDMI, 70m, Kit


HDMI 2.0 Extender over CATx


Distribute uncompressed UHD video, audio, power, or IR together up to 328 ft. (100 m) over a single CATx cable.


  • HDCP 2.2 compliant
  • HD signal transmission via a single CAT5e/CAT6 cable up to 100 m (1080p) and 70 m (4K at 60 Hz YUV 4:4:4)
  • HD signal transmission via a single CAT6A/7 cable up to 100 m (1080p) and 100 m (4K at 60 Hz YUV 4:4:4)
  • IR pass-through allows you to control the source from the display location or control the display from the source location
  • Use two RS-232 control systems for serial communication by connecting to the devices via serial cables to control the source device or display

  Product       Code
(1) HDMI
70m

Kit
  HDMI 2.0 Extender over CATx
HDMI 2.0 Extender over CATx
  AVX-HDMI2-HDB-R2

Send high-quality video & audio signals further, without replacing the copper cable, with this HDMI 2.0 Extender. In compliance with HDR & HDCP 2.2 standards, it supports 4K@60 4:4:4 resolution, Dolby & DTS HD audio, & bi-directional IR control, in a low-profile box. Configure the ARC channel feed for a TV (with ARC support) or an auxiliary S/PDIF input port via an audio output DIP switch on the receiver.

The extender uses proprietary one-way PoC technology to power the receiver from the transmitter. LEDs show power and signal status for established connections between devices.

With increased bandwidth up to 18-Gbps, you can extend signals over CATx cable up to 100 meters. while maintaining:

  • Higher resolutions
  • Higher frame rates
  • Multiple full HD streams in the same pipe
  • 21:9 aspect ratio
