HDMI Extender CATx – 4K/1080p HDMI 1.4, PoC, IR, RS232, 70m
Photo may vary from actual product

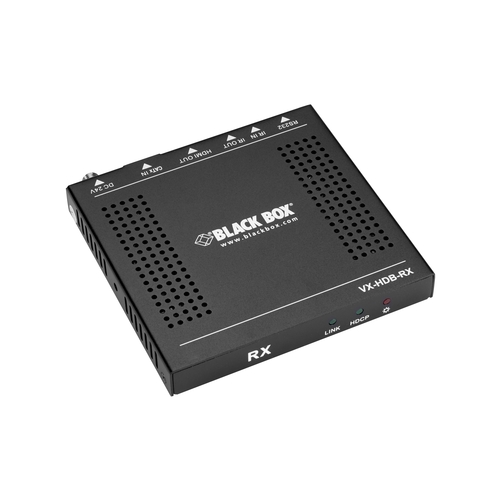

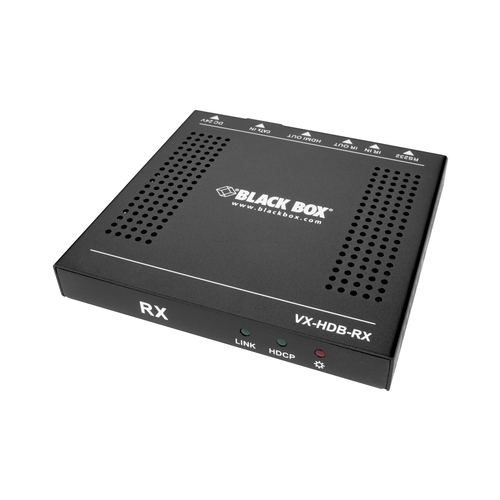

VX-HDB-RX: (2) HDMI, 70m, Receiver
VX-HDB-RX: (2) HDMI, 70m, Receiver
VX-HDB-RX: (2) HDMI, 70m, Receiver
VX-HDB-RX: (2) HDMI, 70m, Receiver
VX-HDB-RX: (2) HDMI, 70m, Receiver


HDMI Extender CATx – 4K/1080p HDMI 1.4, PoC, IR, RS232, 70m


Extend an 1080p/4K HDMI signal up to 70m over a single CAT5e/CAT6a cable


  • Delivers a high-resolution image: 1080p @ 60 Hz @ 48 b/pixels/3D/4K x 2K
  • Max. distance: 40 meters for 4K x 2K or up to 70m for 1080p over a single CATx cable
  • High-bandwidth: 10.2 Gbps
  • HDTV compatible
  • HDMI 1.4 and HDCP 2.2 compliant
  • Supports bidirectional PoC (Power over CATx) only one unit requires power supply
  • Transmit audio/video, IR, serial control data, and power over a single CATx cable

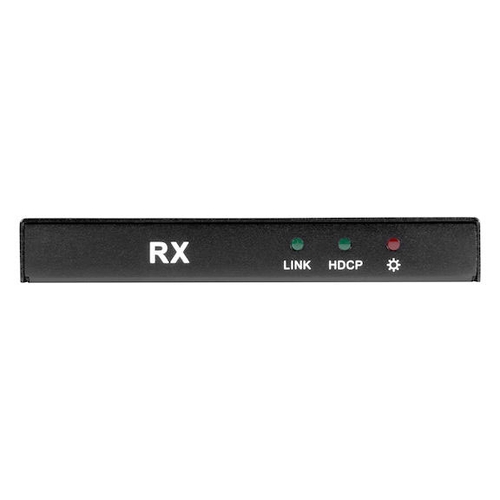

  • LED indicators show work status

  Product       Code
(2) HDMI
70m

Receiver
  HDMI Extender Receiver CATX – 4K/1080p HDMI 1.4, PoH, IR, RS232, 70m
HDMI Extender Receiver CATX – 4K/1080p HDMI 1.4, PoH, IR, RS232, 70m
  VX-HDB-RX Last Time Buy

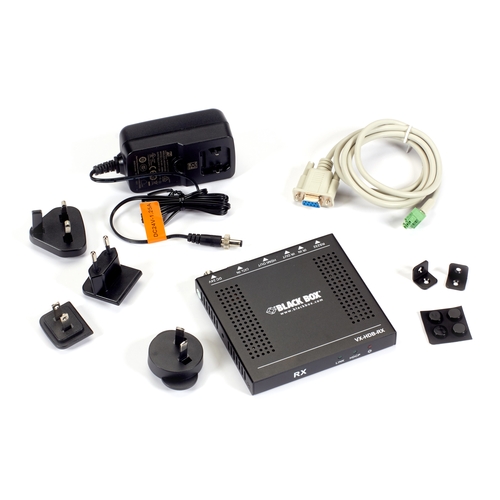

"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items. Extender Kit includes (1) transmitter and (1) receiver

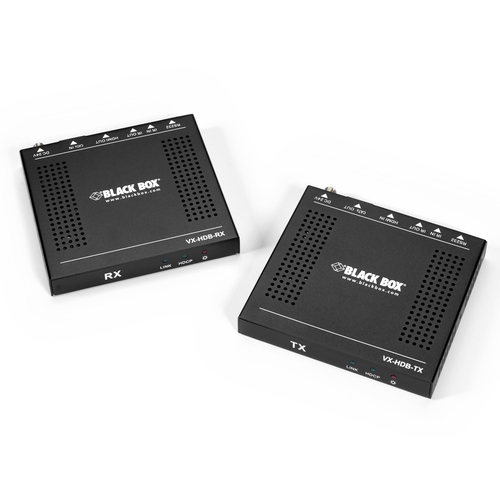

The 4K CATx HDMI Extender Kit consists of a transmitter and a receiver. It extends an 1080p up to 70m or a 4K x 2K signal up to 40m over a single CATx cable.
The Kit supports HDMI 1.4 features that include HDCP compatible 3D, Deep Color and 4K image resolutions and audio. It also supports CEC, bidirectional RS-232 and IR control, and bidirectional Power over CATx.
