VX-1003-RX: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Receiver w/ video scaling

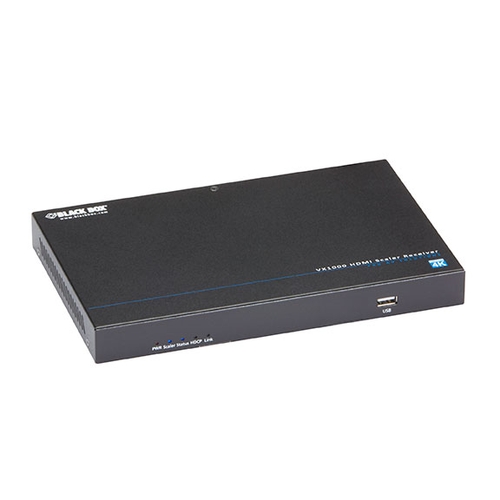

Photo may vary from actual product
VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio
VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio


VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio


Receive and scale HDMI video, audio, RS-232, and Ethernet signals up to 100m.


  • Supports up to 4K (UHD) resolutions.
  • Reliable connection with superior video quality.
  • Sends power to an CATx transmitter via standard PoC.
  • Upscale or downscale video in u to 4K resolution from a CATx transmitter or switcher.
  • Audio de-embedding enables analog or digital audio to be sent to a separate audio system.
  • Automatic HDMI EDID management.
  • HDCP 2.2 compliance.
  • RS-232 and Ethernet pass-through.
  • All connections on the same side of device.
  • Ideal solution whenever scaling of the remote video signal is required for the 4 x 1 Presentation Switcher (AVSC-0401H-R2).
  • Control using rotary button, RS-232, or Telnet.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI 1.4, RS-232, IR , Ethernet, USB
100m

Receiver w/ video scaling
  VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio
VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio
  VX-1003-RX

Accessories

  Product     Code

  4K HDMI CATx Extender USB - VX1000-Series - HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Transmitter
4K HDMI CATx Extender USB - VX1000-Series
  VX-1001-TX

Approvals — FCC, CE, UL, RoHS, WEEE

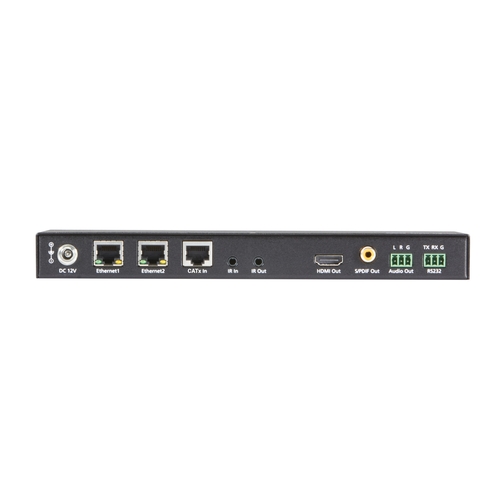

Connectors —
(1) CATx Input,
(1) HDMI output;
(2) Ethernet ports for passthrough or control;
(1) 3.5 mm IR Input;
(1) 3.5 mm IR Output;
(1) RCA S/PDIF output;
(1) 3-position Phoenix connector audio output (left, right, ground);
(1) 3-position Phoenix connector RS-232 (TX, RX, GND);
(1) USB type A female
Leads Supported — HDMI, CATx, USB, RS-232
User Interface — RS-232, Telnet (no GUI)

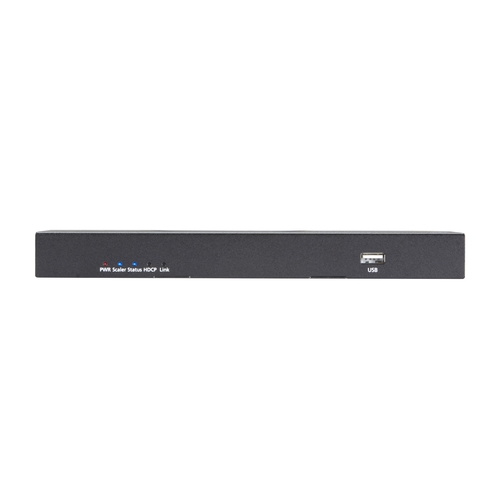

Indicators — LEDs: (1) power; (1) scaler; (1) status;, (1) HDCP; (1) CATx link; (2) Ethernet link and status
DDC Support — DDC pass-through or selectable via API
Cascadable — No
Hotkey Support — No
Encryption — No
Scaling Resolution —
UHD30: 3840 x 2160/30
FHD: 1920 x 1080/60
HD: 1280 x 720/60
WUXGA: 1920 x 1200/60
WXGA: 1280 x 800/60
Source Selection —
Used with a Switcher: System can be controlled via front panel push buttons, IR Remote, Serial, Telnet, or Web GUI
Power —
External power supply,
Input: 100-240 VAC, 50/60 Hz, 1.5 Amps; IEC320 C14 connector;
Output: 12 VDC, 3.0 Amps, 1.8m cord,
Efficiency Level: VI
Temperature —
Operating: 0 to 45°C
Storage: -20 to 70°C
Humidity — 90% non-condensing
Dimensions — 2.5H x 23.4W x 14.4D cm Weight —
Product: 0.9 kg
Shipping: 1.2 kg
