4K HDMI CATx Extender USB - VX1000-Series
Photo may vary from actual product

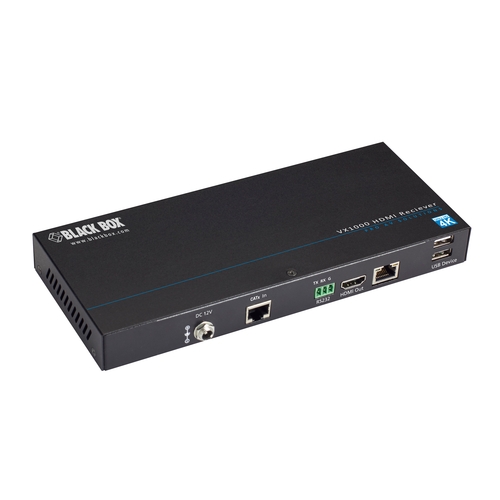

VX-1001-RX: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Receiver
VX-1001-RX: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Receiver

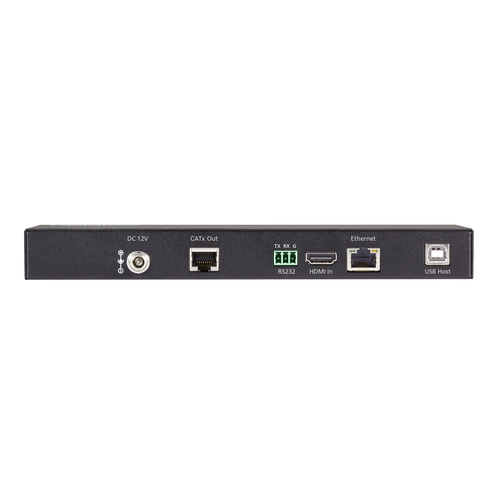

VX-1001-TX: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Transmitter

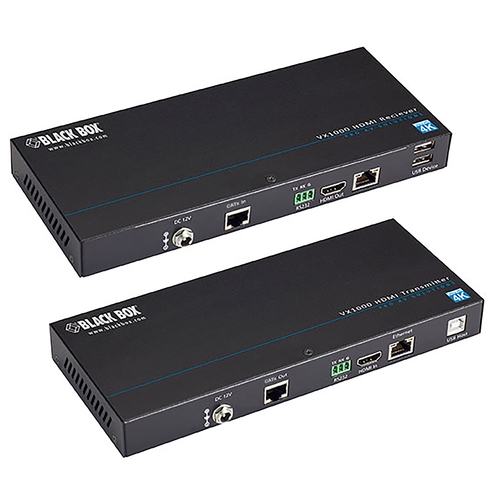

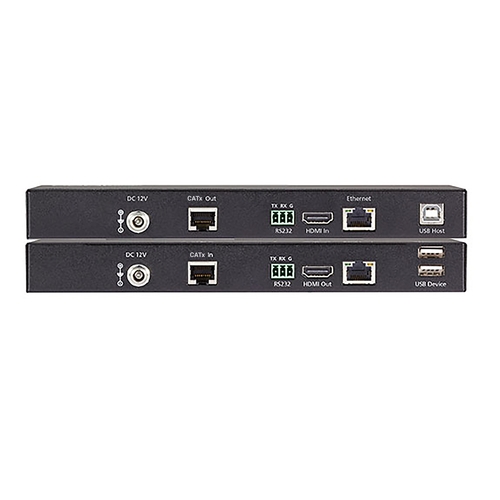

VX-1001-KIT: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Extender Kit
VX-1001-KIT: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Extender Kit
VX-1001-TX: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Transmitter
VX-1001-TX: HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Transmitter


4K HDMI CATx Extender USB - VX1000-Series


Extend HDMI audio and video, Ethernet, RS-232, and USB up to 100m


  • Supports up to 4K (UHD) resolutions.
  • Reliable connection with highest video quality.
  • True 48V PoC powering only requires a single power supply.
  • USB support for keyboard and mouse.
  • Automatic HDMI EDID management.
  • HDCP 2.2 compliance.
  • RS-232 and Ethernet pass-through.
  • All connections on the same side of device.
  • Works with 4 x 1 and 8 x 2 Presentation Switchers (AVSC-0401H-R2, AVSC-0802H).

  Product       Code
HDMI 1.4, RS-232, IR , Ethernet, USB
100m

Extender Kit
  4K HDMI CATx Extender USB - VX1000-Series
4K HDMI CATx Extender USB - VX1000-Series
  VX-1001-KIT

Receiver
  4K HDMI CATx Extender USB - VX1000-Series
4K HDMI CATx Extender USB - VX1000-Series
  VX-1001-RX Last Time Buy

Transmitter
  4K HDMI CATx Extender USB - VX1000-Series
4K HDMI CATx Extender USB - VX1000-Series
  VX-1001-TX
"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.

Accessories

  Product     Code

  VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio - HDMI 1.4, RS-232, IR , Ethernet, USB, 100m, Receiver w/ video scaling
VX1000 Series CATx Extender Scaling Receiver - 4K, HDMI, Audio
  VX-1003-RX

Approvals —CE, FCC, RoHS

Video —
Input:
VW-1001-RX: 1 x CATx
VW-1001-TX: 1 x HDMI IN, Signal Type HDMI1.4 with HDCP 2.2 pass through
Input/Output Resolution Support: 480i, 480p, 576i, 576p, 720P, 1080i, 1080p, 3840 x 2160@24/25/30/50/60Hz
Input Video Level: 0.5-1.0 V p-p
Maximum Pixel Clock: 297 MHz
Output:
VW-1001-RX: 1 x HDMI OUT, Signal Type: HDMI: HDMI1.4 w/ HDCP 2.2 pass through
VW-1001-TX: 1 x CATx OUT
Video Impedence: 100 Ω

Audio —
Audio Format supported: Stereo, LPCM 5.1, LPCM 7.1; Dolby True HD, DTS-HD Master Audio

Control Method —1 x RS-232, 1 x Ethernet, 2 x USB-A Female

Power —
ESD Protection: Human-body Model: ±8kV(Air-gap discharge) ±4kV(Contact discharge)
Surge Protection: Voltage: ±1 kV (ten times respectively for the positive and negative voltage)
Electrical Fast Transient/Burst: Data communication cord: 1 kV
Power cord : 2 kV
Power Supply: DC12V/1.5 Amp
Power Consumption: 1080p@60Hz: 13.08W (pair) maximum, 3840 x 2160@60Hz: 13.2W (pair) maximum

Physical —
Dimensions: 2.5H x 22W x 9.32D cm
Weight:
0.5 kg

Environmental —
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 70°C
Humidity: 10% to 90%, non-condensing
