VX-HDMI-TP-70M: HDMI 1.4, IR, 70m, Extender Kit
Photo may vary from actual product
4K HDMI IR Extender 70M
4K HDMI IR Extender 70M


4K HDMI IR Extender 70M


Send an HDMI signal to an HDMI display up to 70m away from the source


  • Send HDMI signals to multimedia displays up to 70 m using a single CAT5e/6 cable.
  • Resolutions up to 1080p @70m or 4k@ 40m with lossless compression.
  • This kit includes an HDMI transmitter and HDMI receiver.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
HDMI 1.4, IR
70m

Extender Kit
  4K HDMI IR Extender 70M
4K HDMI IR Extender 70M
  VX-HDMI-TP-70M

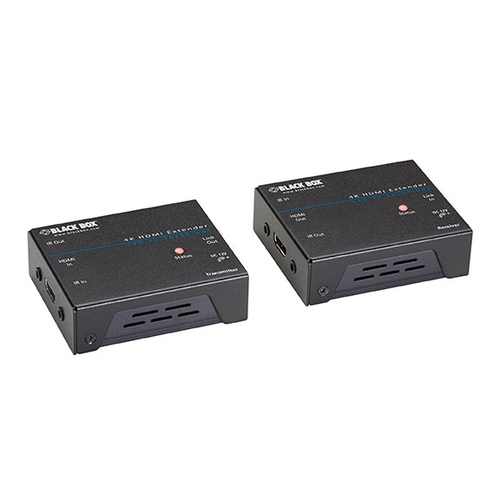

Kit with transmitter and received included

This complete kit includes everything you need to extend HDMI video to a remote display over one CATx cable for faster, more efficient HDMI content sharing and distribution.

HDMI extension over a single CATx cable
The 4K CAT5/6 Extender distributes digital signage content or other HD video and audio over a single CAT5e/6 cable. The transmitter-receiver combo makes it easy to send digital full 1080p-quality video and audio plus IR signals up to 70 m or 4K/UHD up to 40 m.*

Optimal PC-to-screen performance
The 4K CATX Transmitter and Receiver feature EDID copy function and are HDCP-compliant and Blu-ray ready.

Lossless compression for HD extension
The 4K CATx Extender transmits broadcast-quality video and audio as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 3840 x 2160 (Full HD, WUXGA, UHD) at 30 Hz.

Simplified control
The extender supports CEC pass-through and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV's remote controller to change settings on a source device in another room.

4K Extender Kit is great for:
  • Hospitality (hotels and conference rooms)
  • Digital signage (airports and shopping malls)
  • Surveillance cameras
  • Whole-home networking
  • Point-to-point consumer application

*NOTE : Distance depends on the characteristics and quality of the cable and the type of HDMI source and display. STP cabling is recommended for environments with high EMI or RFI.
