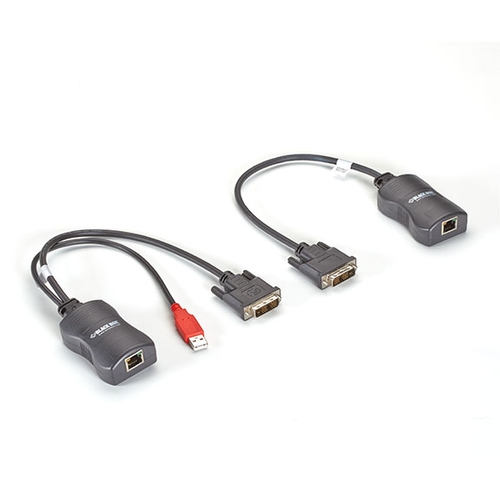

Photo may vary from actual product


Line-Powered Extender Kit - DVI over CATx


Extend DVI video to remote displays over one shielded CATx cable.


  • Easy-to-install, plug-and-play system gets you connected right away.
  • The uncompressed communication system allows for crisp, digital video delivery with resolutions up to 1920x1200 at 60Hz.
  • Reach up to 50m over a single shielded CATx cable.
  • Smart EDID management keeps aspect ratios and resolutions intact indiscriminate of display type. This ensures the correct content is displayed.
  • Durable locking connectors to ensure strong connectivity.
  • Built to last and selected for reliability, durability, and performance.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
(1) Single link DVI-D
50m

Extender Kit
  Line-Powered Extender Kit - DVI over CATx
Line-Powered Extender Kit - DVI over CATx
  AVU8011A

Approvals — CE, FCC, RoHS2
Connectors—
Transmitter: DVI-D male, USB type A (for power only);
Receiver: DVI-D male
Distance and resolution — 50 m (164 ft.) at 1920 x 1200
Hardware Compatibility— All computers with DVI-D and USB connections - requirement dependent
DVI-D interface— The system supports resolutions such as 480p, 720p, 1080p, or WUXGA (1920x1200) at 60Hz* and 24 bit color depth. *with reduced blanking
Operating Temperature — 0 to 40°C (32 to 104°F)
Power — USB powered, 5VDC -2.5W for both RX and TX units combined
Dimensions —
2H x 6.4D x 4.6W cm (0.8"H x 2.5"D x 1.8"W)
Pigtails: 30 cm L (12")
Weight — 0.27 kg (0.6 lb) per pair

NOTES: Category 6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level if immunity to electromagnetic disturbances.

Distances are achieved using simple lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 m. Preferably patch cables should be of type CAT7 and less than 2 m. Patch cables over 2 m must be CAT7.

Do not connect the local units, via the catx cable, to anything other than the remote unit.
