XR DVI-D Extender with Audio, RS-232, and HDCP
Photo may vary from actual product
XR DVI-D Extender with Audio, RS-232, and HDCP
XR DVI-D Extender with Audio, RS-232, and HDCP
AVX-DVI-TP-100M: Single link DVI, audio, RS232, 100m, Extender Kit


XR DVI-D Extender with Audio, RS-232, and HDCP


Our “eXtended Range” DVI solution that also transmits stereo audio, serial, and HDCP data.


  • Use a single CAT5e/6/7 run for extending DVI-D video plus audio.
  • Also extends RS-232 and HDCP signals to the remote screen.
  • Goes much farther than standard DVI cabling—up to 100m*.
  • Supports resolutions up to 1080p (HDTV) or 1920 x 1200 (VESA).
  • Enables flexible screen location without compromising video quality.
  • HDCP compliant and Blu-ray ready, and supports EDID.
  • Transmits serial RS-232 TXD and RXD control signals.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
Single link DVI, audio, RS232
100m

Extender Kit
  XR DVI-D Extender with Audio, RS-232, and HDCP
XR DVI-D Extender with Audio, RS-232, and HDCP
  AVX-DVI-TP-100M

Accessories

  Product     Code

  DVI SL/DL Cable with DVI-D connectors - Video Cable, DVI-D to DVI-D, M/M, 0.9m
DVI SL/DL Cable with DVI-D connectors
  EVNDVI02-0003
  DVI SL/DL Cable with DVI-D connectors - Video Cable, DVI-D to DVI-D, M/M, 3m
DVI SL/DL Cable with DVI-D connectors
  EVNDVI02-0010-R2
  DVI SL/DL Cable with DVI-D connectors - Video Cable, DVI-D to DVI-D, M/M, 1.8m
DVI SL/DL Cable with DVI-D connectors
  EVNDVI02-0006
  Stereo Audio Cable - 3.5-mm - M/M, 1.5m
Stereo Audio Cable - 3.5-mm
  EJ110-0005

Further Quick Facts

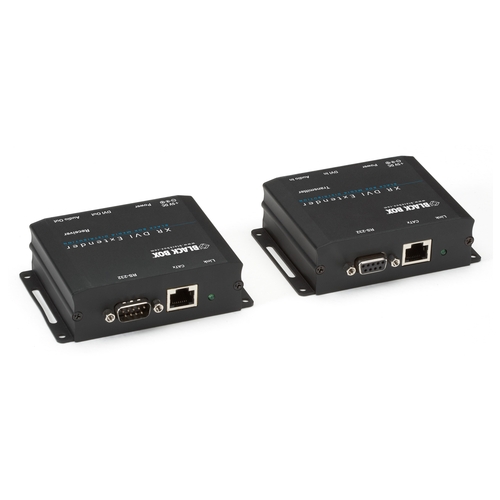

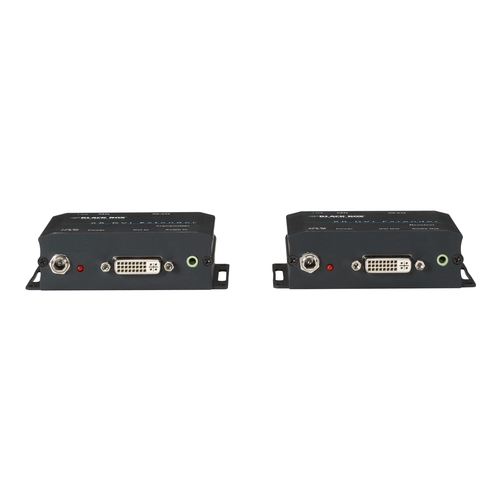

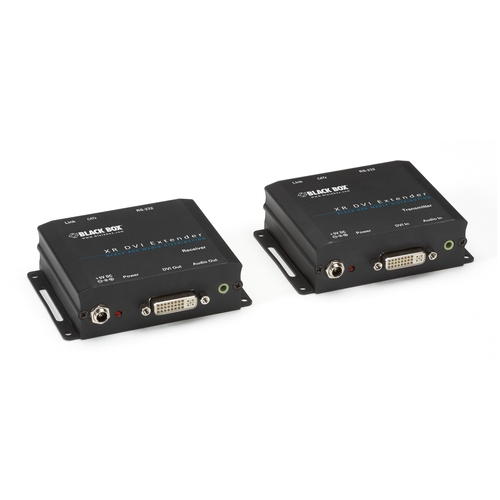

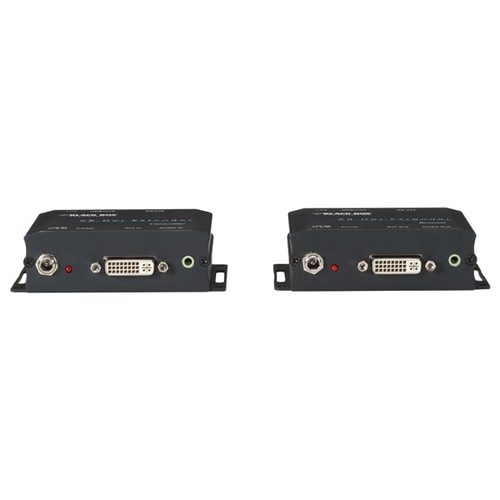

  • Includes a transmitter and a wall mountable receiver.
  • Auto equalization for extended video range.
  • No software or driver installation required.
  • Complies with the DVI 1.0 standard.

Put a digital DVI screen up to 100m* from a video source and control a monitor via RS-232 TXD and RXD control signals with this extender.

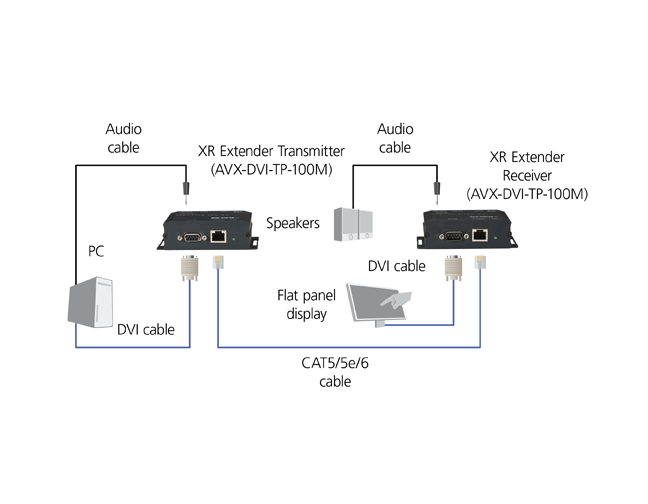

Extending over a single CAT5e/6/7 cable, the transmitter-receiver combo supports both HDTV resolutions and VESA standards. The extender makes it easy to send digital 1080p-quality video and 2-channel stereo analog audio plus serial RS-232 control signals to a distant screen or projector.

Audio is integrated into the CATx cable extension, so you don’t need a separate cable to transmit audio from the source to the screen.

Because the extender supports bidirectional RS-232 control, you can use serial commands from a PC to control RS-232 equipment or turn a remote screen on and off to save energy in your video application.

Plus, the XR DVI-D Extender with Audio, RS-232, and HDCP supports EDID and HDCP bypass, so you can also extend content from a protected-content source.

  • NOTE: Distance depends on the characteristics and quality of the cable and the type of DVI source and display.
