Video Matrix Switcher - HDMI 2.0
Photo may vary from actual product
AVS-HDMI2-8X8-R2: HDMI 2.0, SPDIF Audio, 8x8

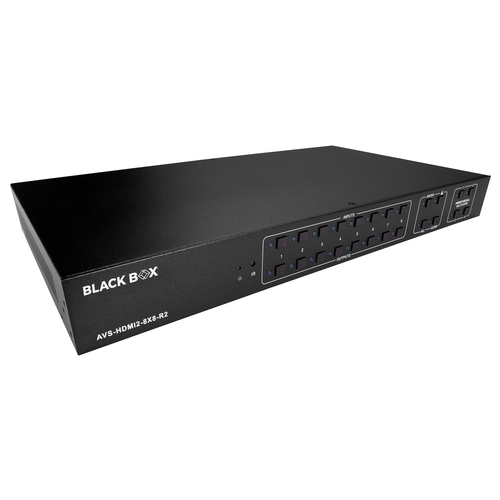

AVS-HDMI2-8X8-R2: HDMI 2.0, SPDIF Audio, 8x8
AVS-HDMI2-4X4-R2: HDMI 2.0, SPDIF Audio, 4x4

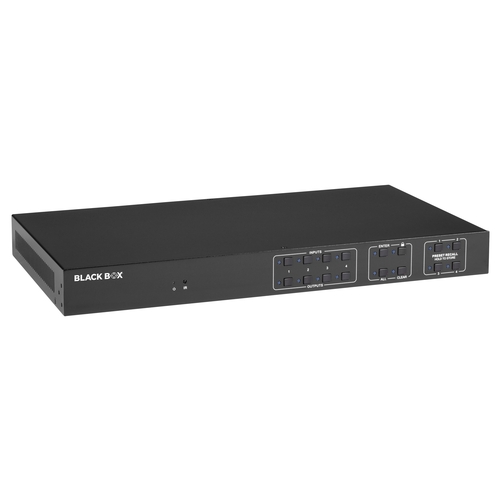

AVS-HDMI2-4X4-R2: HDMI 2.0, SPDIF Audio, 4x4
AVS-HDMI2-4X4-R2: HDMI 2.0, SPDIF Audio, 4x4
AVS-HDMI2-4X4-R2: HDMI 2.0, SPDIF Audio, 4x4


Video Matrix Switcher - HDMI 2.0


Professional 4K HDMI 2.0 Matrix Switch with either 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, & 4 or 8 SPDIF audio outputs. Designed for switching HDMI 2.0 & HDCP 2.2 compliant signals. Includes powerful EDID management.


  • SPDIF ports provide de-embedded HDMI audio output
  • Transmits 4K x 2K @ 60 Hz 4:4:4 signal up to 16.4-ft via HDMI port
  • Provides powerful EDID management, built-in EDID can be invoked via DIP switch on rear panel, RS-232 common or web-based GUI

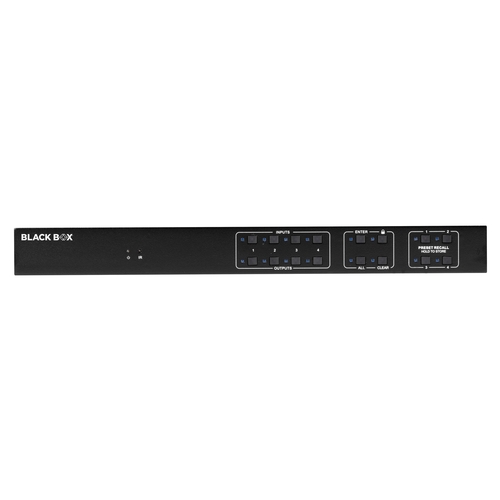

  • Controllable via front panel button, IR, RS232 or web-based GUI
  • LCD screen shows real-time I/O connection status
  • Convenient firmware upgrade through micro USB port
  • Easy installation with rackmounting design

  Product       Code
HDMI 2.0, SPDIF Audio

4x4
  Video Matrix Switcher - HDMI 2.0
Video Matrix Switcher - HDMI 2.0
  AVS-HDMI2-4X4-R2

8x8
  Video Matrix Switcher - HDMI 2.0
Video Matrix Switcher - HDMI 2.0
  AVS-HDMI2-8X8-R2

Accessories

  Product     Code

  HDMI 2.0 Active Optical Cable, LSZH - HDMI, 10m
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-10M-R2
  HDMI 2.0 Active Optical Cable, LSZH - HDMI, 30m
HDMI 2.0 Active Optical Cable, LSZH
  AOC-HL-H2-30M-R2
  Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 6-ft. (1.8-m) - Video Cable, HDMI 2.0, M/M, 1.8m
Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 6-ft. (1.8-m)
  VCB-HD2L-006
  Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 10-ft. (3.0-m) - Video Cable, HDMI 2.0, M/M, 3m
Premium High-Speed HDMI Cable with Ethernet and Gripping Connectors – HDMI 2.0, 4K 60Hz UHD, 10-ft. (3.0-m)
  VCB-HD2L-010

The Video Matrix Switch is a professional 4K HDMI 2.0 Matrix Switch with either 4 or 8 HDMI inputs, 4 or 8 HDMI outputs, and 4 or 8 SPDIF audio outputs. It is designed for switching HDMI 2.0 and HDCP 2.2 compliant signals. It also includes powerful EDID management to ensure reliable AV distribution and routing.

This capable switch supports 4K x 2K @ 60 HZ 4:4:4 and 1080p 3D signals, and is compatible with HDMI 2.0, HDCP 2.2, and is backward compatible with the earlier versions. You can control the unit via the front panel, IR, RS-232, TCP/IP, and web-based GUI.

The matrix switch is designed to be the central component of an AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.

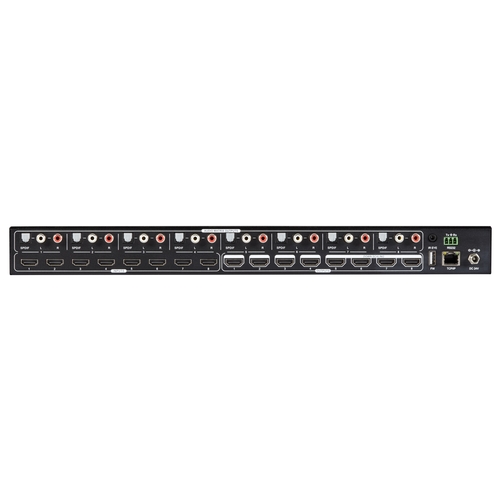

The switch supports audio via stereo audio ports, with ports for both L/R unbalanced audio as well as SPDIF.

Suitable for use with AOC cables (5V, 500mA, 2.5W).
