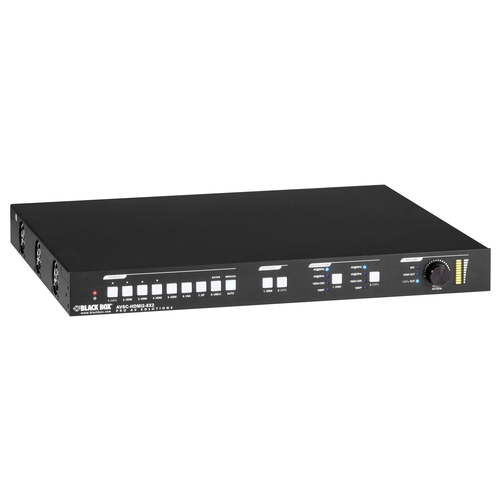

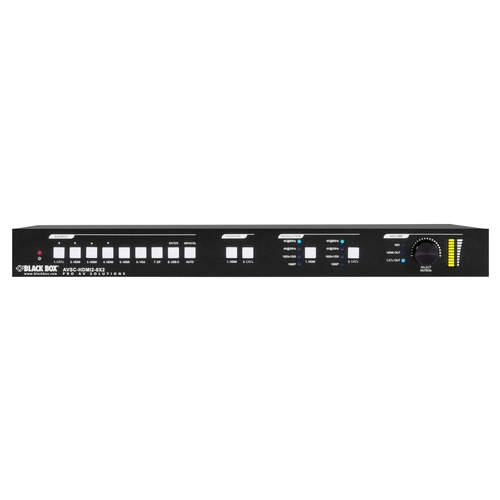

8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0
Photo may vary from actual product
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2
AVSC-HDMI2-8X2: HDMI 2.0, VGA, DP, USB-C, CATx, 8x2


8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0


Simplifies meeting room and presentation space system integration with (automated) video switching


  • Share multiple sources with two displays.
  • HDMI 2.0 and HDCP 2.2 compliant.
  • The video resolution can be up to 4K @ 60 Hz 4:4:4.
  • Supports video resolution down-scaling and up-scaling, 1080p, 1920 x 1200p, 4K @ 30 Hz, 4K @ 60 Hz can be selected for HDMI and CATx outputs.
  • Supports automatic switching.
  • Features a mirrored HDMI output for CATx output.
  • Visually lossless video de-compression and compression for HDMI signals transmission up to 40m at 4K and 70m at 1080p on CATx input and output.
  • CATx input and output support 24V PoC (Power over CAT6).
  • External balanced audio inputs can be embedded in one CATx input and two HDMI video inputs respectively.
  • Provides two groups of audio outputs (balanced audio and digital SPDIF audio) for audio de-embedding.
  • Supports MIX audio input and its volume control.
  • Supports HDMI output, CATx output audio control.
  • Multiple control options: Controllable via RS-232 local and pass-through, IR local and pass-through, TCP/IP, relay, CEC and on OSD.

  Product       Code
HDMI 2.0, VGA, DP, USB-C, CATx

8x2
  8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0
8x2 Video Matrix Switcher, 18G Seamless Switching, HDMI 2.0
  AVSC-HDMI2-8X2 Last Time Buy
"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.

Accessories

  Product     Code

  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 1m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-001M
  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 2m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-002M
  High Speed HDMI Cable with Ethernet - Video Cable, HDMI with Ethernet, M/M, 3m
High Speed HDMI Cable with Ethernet
  VCB-HDMI-003M
  HDMI 2.0 Extender over CATx - (1) HDMI, 70m, Kit
HDMI 2.0 Extender over CATx
  AVX-HDMI2-HDB-R2

This matrix switcher is designed to be the central component of AV system. It is ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.

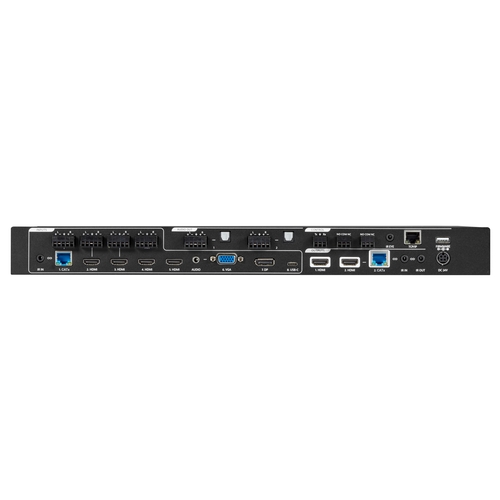

The 8 x 2 HDR Video Matrix Switcher simplifies meeting room and presentation space system integration by providing one CATx extension input, four HDMI inputs, one VGA input, one DP input, one USB-C input, as well as one CATx output and one HDMI output. It also provides external audio inputs to be embedded in CATx-extensions, HDMI and VGA video inputs respectively. Moreover, it provides MIX audio input for global audio.

The matrix switcher provides true 4K scaling up to 4K @ 60 Hz @ 4:4:4. Both inputs and outputs are capable of providing 4K @ 60 Hz @ 4:4:4 signals (HDR). The CATx input and output provide an innovative solution with VLC technology, allowing transmission of HDMI 2.0 signals over a CAT5/6 cable while ensuring very high, original image quality. It is designed for use with the VX-HDB2-KIT extender kit. The USB-C input is ideal for AV interfacing with newer MacBook, Chromebook, and Windows PC, as well as smart phones and tablets.

The matrix switcher supports auto switching on HDMI, CATx-ports and HDMI loop outputs based on TMDS activity signals sensing. It also allows users to control system functionality via Web GUI, RS-232, IR and CEC. Additionally, users can control a relay device such as the rise and fall of a projector screen over RELAY ports.
