Central Power Hub
Photo may vary from actual product

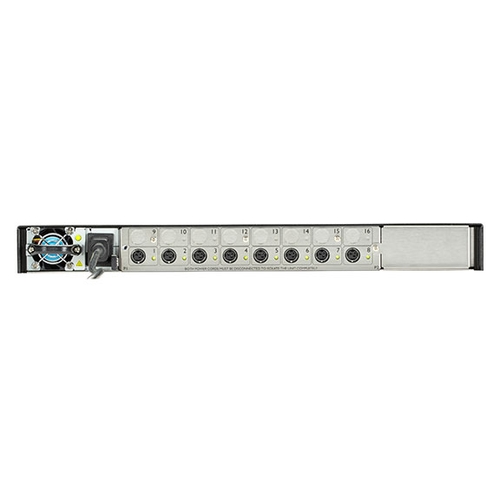

ACR1000-CPH8R-R2: 8 ports
ACR1000-CPH8R-R2: 8 ports

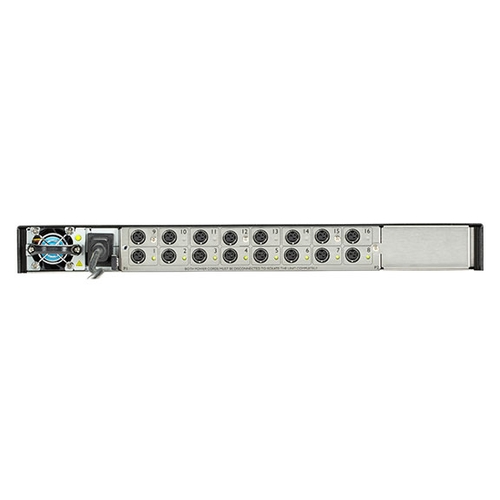

ACR1000-CPH16R-R2: 16 port

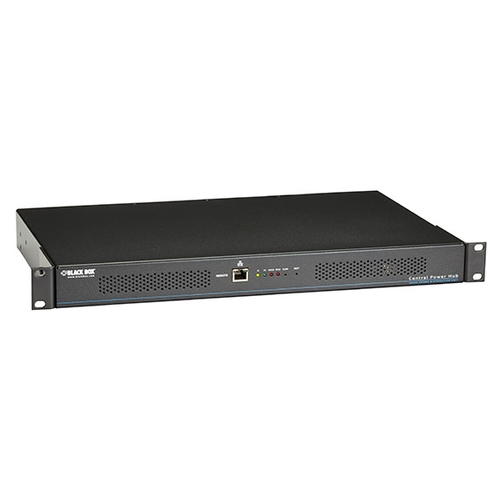

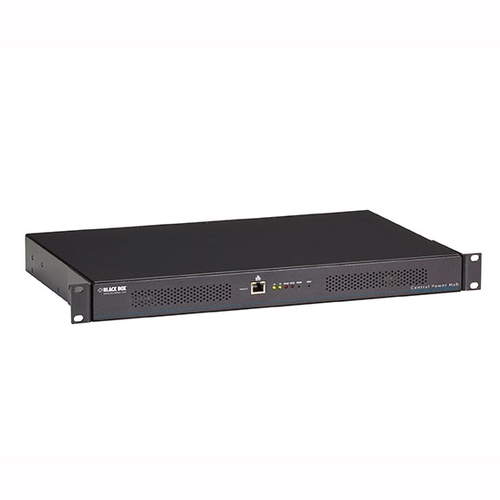

Central Power Hub


Power Distribution Hub for high-performance KVM applications.


  • Power distribution unit (PDU) for use with Black Box high-performance KVM products.
  • Central power feed to 5V or 12V DC Black Box KVM switches and extenders with up to 20 watts per port.
  • A more efficient and reliable way to ensure uptime than having extra power adapters proliferate as your installation grows.
  • Secure WebUI for configuration and monitoring of system power status.
  • Highest resilience when equipped with second 600khrs power supply.
  • Clean professional installation with 8 or 16 lockable 3-pin DC connectors in only 1 RU.
  • Available with 8 or 16 independently controllable 12V outputs.
  • Use 12V to 5V converter cables to connect KVM units with 5VDC power feeds, or 3-pin lockable cables for KVM units with 12VDC power feeds.
  • 3rd-party API control support.

  Product       Code


8 ports
  Central Power Hub
Central Power Hub
  ACR1000-CPH8R-R2

16 port
  Central Power Hub
Central Power Hub
  ACR1000-CPH16R-R2
Note: The second power supply for redundancy must be ordered seperatly.

Accessories

  Product     Code

Adaptors & Adaptor Cables
  Power converter cable 12VDC/5VDC for central hub, 1.8 m
Power converter cable 12VDC/5VDC for central hub, 1.8 m
  ACR1000-12V5-CBL3M
Power Supply
  Spare or Redundancy Power Supply for Central Power Hub
Spare or Redundancy Power Supply for Central Power Hub
  ACR1000-CPH-PS-R2
Adaptors & Adaptor Cables
  Central Power Power Hub converter cable
Central Power Power Hub converter cable
  ACR1000-3PL-CBL2M

Manage power in one place.
These hubs provide up to eight or sixteen power outputs in one place. The power distribution units feature a single power supply with an optional secondary, to deliver full power redundancy. The Central Power Hub (CPH) supports 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting. It provides power to grow your installation on demand.

The power output ports are lockable, preventing accidental disconnects. Each output is limited to 20 Watts at 12V.

Hot swappable power modules.
The chassis can supply two 460W power modules slot into the back of the Power Hub chassis. Conversion from the mains AC supply to DC voltage occurs within these modules. In situations where redundancy is required, the Power Hub will equally balance a normal load between them. In the case of one module ceasing operation, the Hub automatically transfers the full load to the remaining module, which can easily handle the needs of up to 8 respectively 16 ports.

Protection.
Power integrity, safety, and management are at the heart of the Central Power Hub system. At start-up, the CPH automatically checks the validity of the power modules. It then enables each power output in sequence so they are do not overload the modules by starting simultaneously. As the system provides steady power to your installation, protections are in place to ensure against excess demand by anyone connected device.

Remote management.
The Central Power Hub can be controlled and monitored by a web interface. Temperature, fan speeds, and current measurements are viewable. Each output can be individually controlled.
• Support for dual power supplies for redundancy, unit comes with one power supply.
• Supports eight or sixteen 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting.

This product works with:
  • Agility IP-Based KVM Extender Units (ACR1000A-R2, ACR1002A, ACR1012A)
  • Agility IP-Based KVM Switching Controller (ACR1000-CTL-24/48/96/192/288/ULT)
  • DCX 3000 KVM Switch units (DCX3000, DCX3000-DVR)
  • Wizard DVI KVM Switches (K2004A, KV2004A, KV2204A, KV2304A, KV2404A)
  • Wizard VGA KVM Switches (KV3004A, KV3204A, KV3304A, KV3404A)
  • LRX KVM Extender DVI, USB, audio and serial extension over CATx (ACU5700A)
  • DisplayPort CATx Extender (ACU5800A)
  • 4-Port HDMI distribution hub (AVU8004A)
  • Wizard CATx Extenders (ACU5501A, ACU5502A-R2, ACU5520A, ACU5051A, ACU5052A, ACU5250A-R2, ACU5122A, ACU5142A, ACU5110A, ACU5112A)
Please check with our Tech Support Center compatibility for other devices
