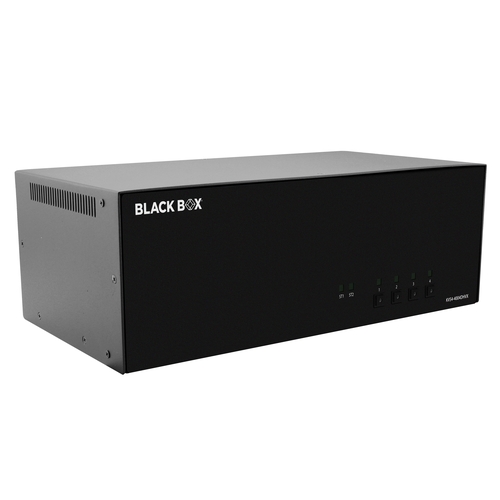

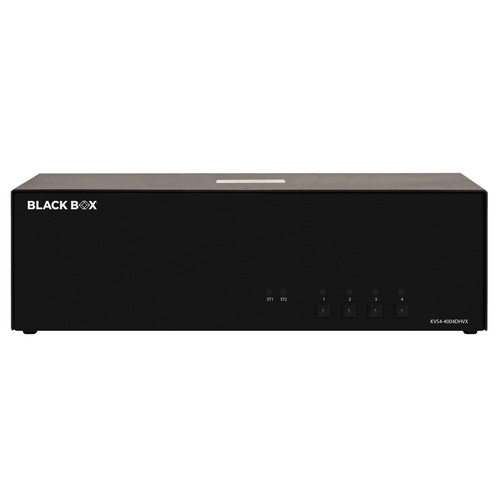

Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
Photo may vary from actual product
Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
KVS4-4004DHVX: Dual Monitor DVI, DisplayPort, HDMI, 4 ports, (2) USB 1.1/2.0, audio, CAC


Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC


Control 4 Dual Head DP, 4 HDMI, and 4 DVI-I computers from a single workplace using 1 set of keyboard and mouse and 2 DP, 1 HDMI, 1 DVI-I momitors, and CAC


  • Certified for NIAP Protection Profile for Peripheral Sharing Device Version 4.0
  • Supports HDMI 1.4 and DisplayPort 1.2
  • Delivers up to 3840 x 2160 @ 30 Hz, VGA supported with adapters as long as all inputs/outputs are VGA (no mixing/matching)
  • Works with Windows, Mac, and Linux
  • Includes balanced speakers output and switching
  • Switch via front-panel tactile buttons with LED indicator
  • Uses an external power supply
  • Includes CAC port

  Product       Code
Dual Monitor DVI, DisplayPort, HDMI
4 ports

(2) USB 1.1/2.0, audio, CAC
  Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC
  KVS4-4004DHVX

Accessories

  Product     Code

  Secure KVM Analog Remote Controller - Remote Controller
Secure KVM Analog Remote Controller
  KVSC-4
  Secure KVM Touchscreen Controller - Touchscreen Controller
Secure KVM Touchscreen Controller
  KVSC-16

Guard sensitive data in defense applications, secure control rooms, server operations, corporate, educational, medical, banking, insurance, transit, or industrial applications, and more. This switch uses mechanical, electrical, and optical signal isolation to prevent hacking and data leakage. Control KVM (Keyboard, Video, and Mouse) operation on up to 8 DisplayPort, 4 HDMI, and 4 DVI-I computers plus analog audio using just 1 set of keyboard and mouse, 2 DisplayPort, 1 HDMI, 1 DVI-I displays, and analog audio.

NOTE: The switches support HDMI 1.4 and DisplayPort 1.2.

Complies with NIAP Protection Profile for Peripheral Sharing Device Version 4.0
The switches are tested and certified under the USA scheme for NIAP Protection Profile 4.0.

Front-Panel Buttons
Securely switch between sources.

Maximum Security
Inverted signals control data relays to guard connections against outside intrusion. Each port has an isolated data channel and each unit uses non-reprogrammable ROM with no data leakage between ports. Isolated connections also prevent data leaks between secure ports and the outside world when accessing classified and public networks over the internet.

Secure EDID Learn and Video Emulation
The switch emulates a keyboard and mouse for each attached computer via a USB cable. Selected and non-selected computers maintain a connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching. Emulation also prevents the direct connection between peripherals and connected computers.

Tamperproof Seals
Built-in tamperproof seals and a long-life internal anti-tamper battery keep devices secure.

Optional CAC Port
Add a Common Access Card (CAC) reader at point-of-sale in retail or for access in other industries.
