Secure KVM Switch, NIAP 3.0, DisplayPort dual head
Photo may vary from actual product

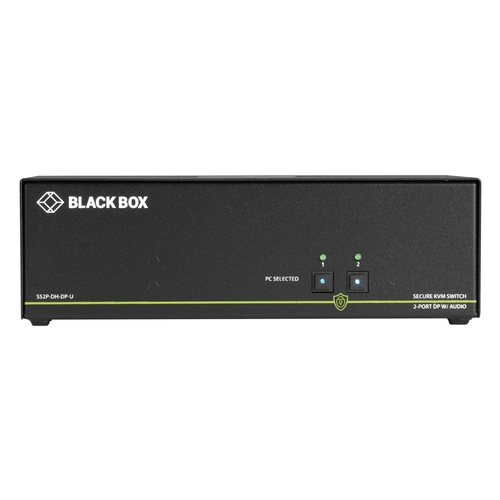

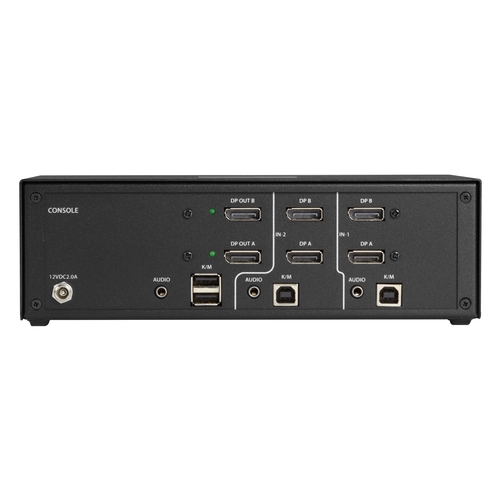

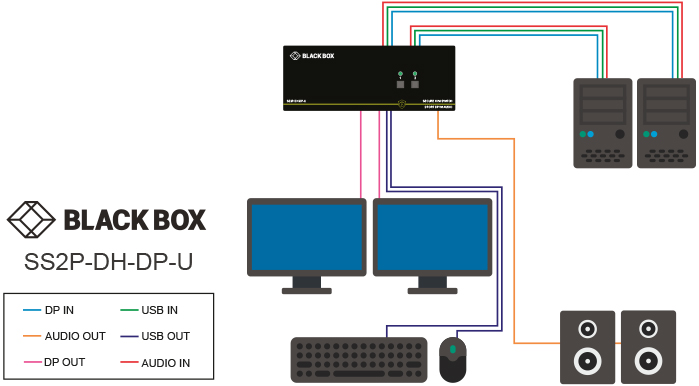

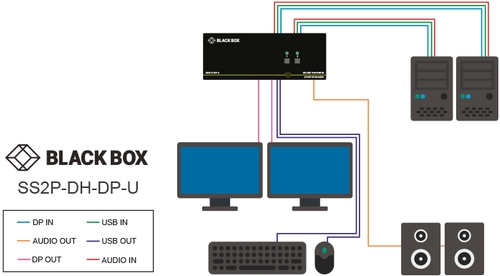

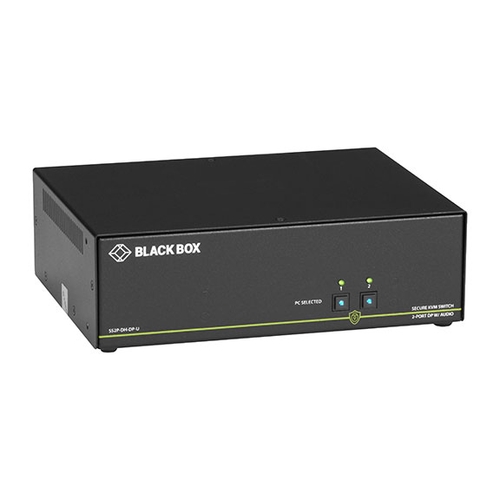

SS2P-DH-DP-U: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio
SS2P-DH-DP-U: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio
SS2P-DH-DP-U: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio
SS2P-DH-DP-U: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio
SS2P-DH-DP-U: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio

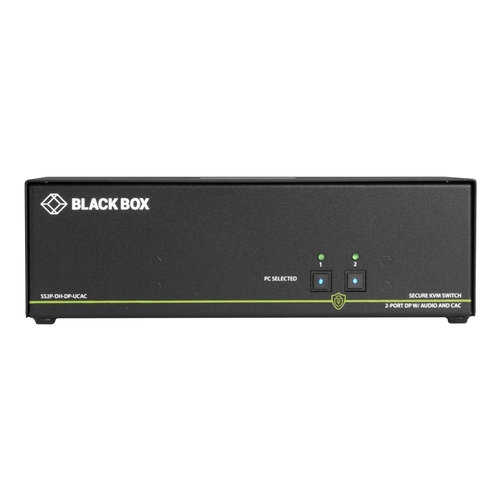

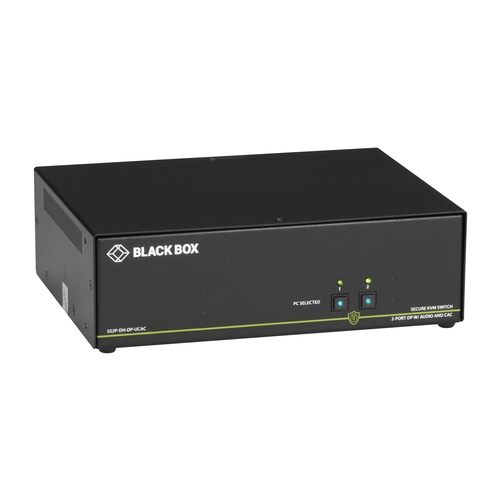

SS2P-DH-DP-UCAC: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio, CAC
SS2P-DH-DP-UCAC: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio, CAC
SS2P-DH-DP-UCAC: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio, CAC
SS2P-DH-DP-UCAC: (2) DisplayPort 1.2, 2 port, USB Keyboard/Mouse, Audio, CAC

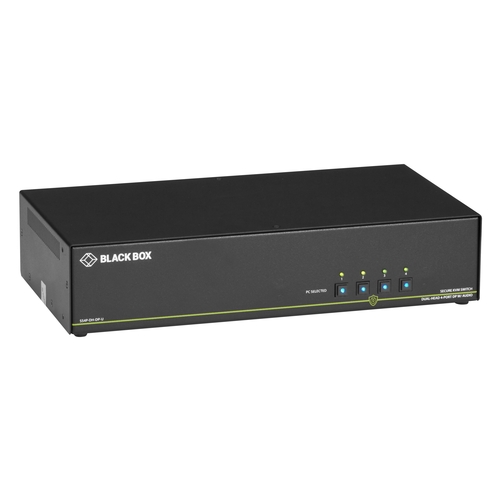

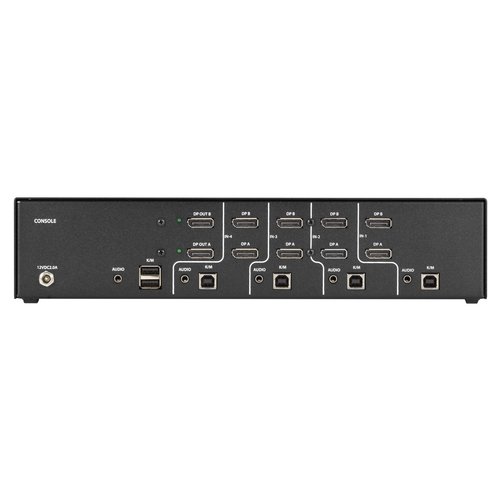

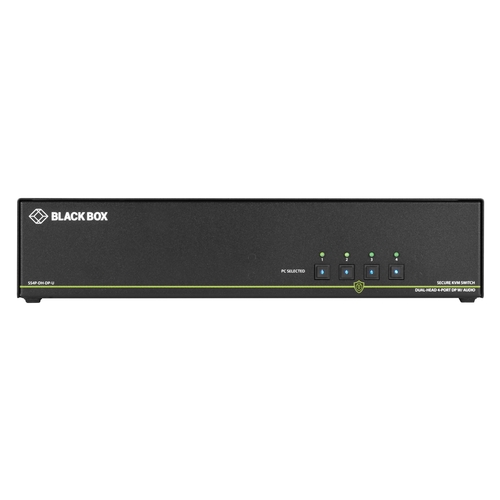

SS4P-DH-DP-U: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio
SS4P-DH-DP-U: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio
SS4P-DH-DP-U: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio
SS4P-DH-DP-U: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio

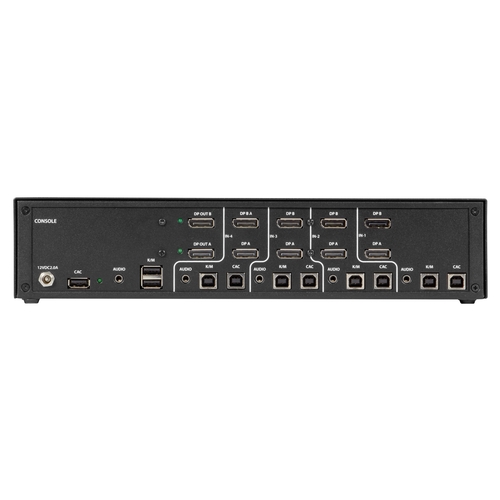

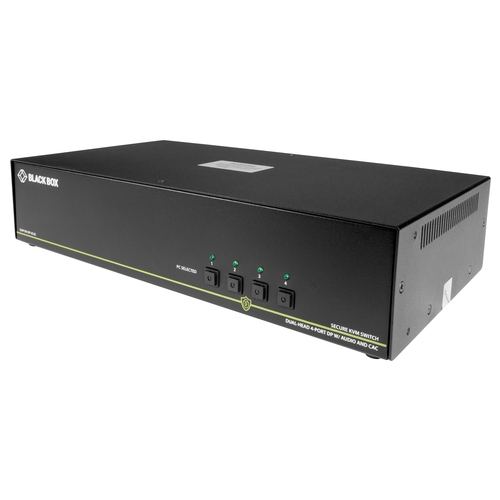

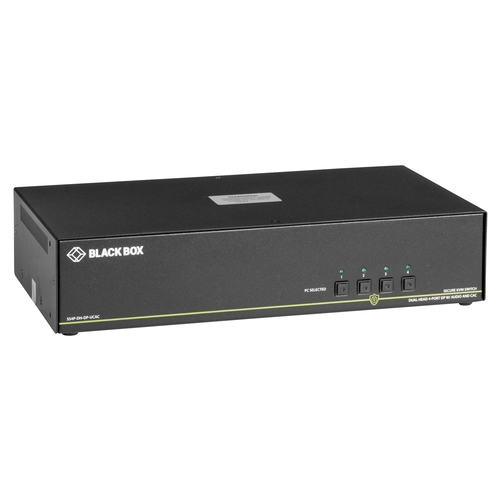

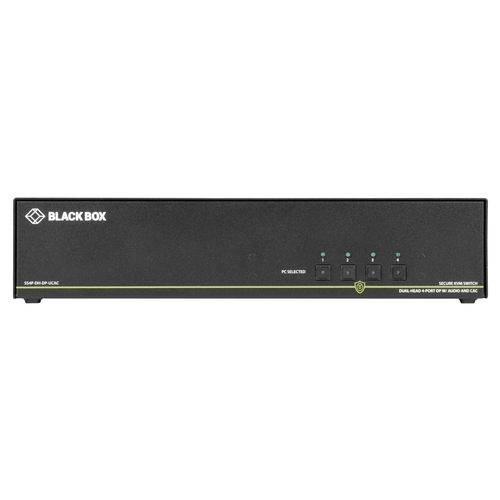

SS4P-DH-DP-UCAC: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio, CAC
SS4P-DH-DP-UCAC: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio, CAC
SS4P-DH-DP-UCAC: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio, CAC
SS4P-DH-DP-UCAC: (2) DisplayPort 1.2, 4 ports, USB Keyboard/Mouse, Audio, CAC


Secure KVM Switch, NIAP 3.0, DisplayPort dual head


Control for up to four dual-head computers through a single user console, while keeping full information assurance.


  • Reliable way to access multiple computers connected to different networks.
  • Safeguards critical data from accidental transfers, unauthorized access, or compromised data.
  • Perfect for any organization that handle sensitive or confidential data on separate networks with different levels of security.
  • Tested and certified to NIAP Protection Profile version 3.0.
  • Supports Windows, Mac, and Linux OS.
  • Two 4K ultra HD DisplayPort channels (each 3840x2160@30Hz)
  • Secure EDID learning and emulation allows connection to most monitors
  • Supports balanced speaker outputs and switching.

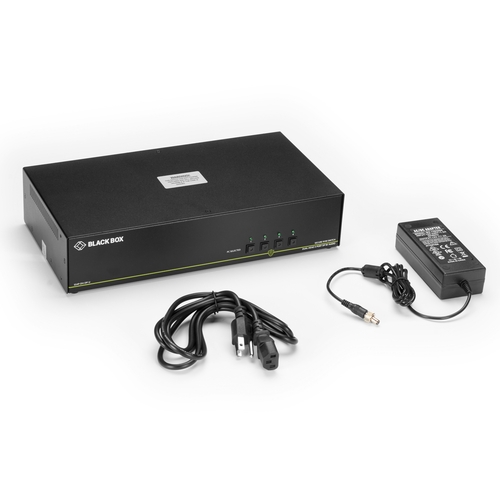

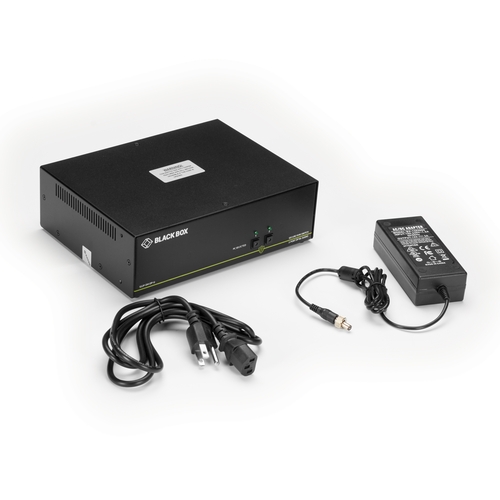

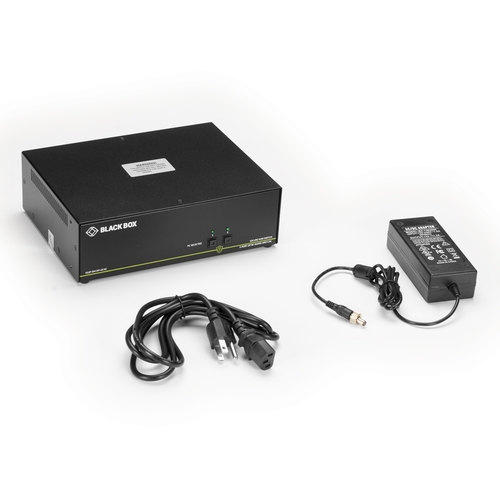

  • Locking AC power supply.
  • Options with fully advanced and configurable CAC port allow users to assign specific peripheral devices to the switch.
  • Warranty: 3 Year Double Diamond™ Warranty (Standard)

  Product       Code
(2) DisplayPort 1.2
2 port

USB Keyboard/Mouse, Audio
  Secure KVM Switch, DisplayPort, 2-Port, NIAP 3.0 (dual head)
Secure KVM Switch, DisplayPort, 2-Port, NIAP 3.0 (dual head)
  SS2P-DH-DP-U

USB Keyboard/Mouse, Audio, CAC
  Secure KVM Switch, DisplayPort, 2-Port, CAC, NIAP 3.0 (dual head)
Secure KVM Switch, DisplayPort, 2-Port, CAC, NIAP 3.0 (dual head)
  SS2P-DH-DP-UCAC
4 ports

USB Keyboard/Mouse, Audio
  Secure KVM Switch, DisplayPort, 4-Port, NIAP 3.0 (dual head)
Secure KVM Switch, DisplayPort, 4-Port, NIAP 3.0 (dual head)
  SS4P-DH-DP-U

USB Keyboard/Mouse, Audio, CAC
  Secure KVM Switch, DisplayPort, 4-Port, CAC NIAP 3.0 (dual head)
Secure KVM Switch, DisplayPort, 4-Port, CAC NIAP 3.0 (dual head)
  SS4P-DH-DP-UCAC

Accessories

  Product     Code

  Secure KVM Analog Remote Controller - Remote Controller
Secure KVM Analog Remote Controller
  KVSC-4
  Secure KVM Touchscreen Controller - Touchscreen Controller
Secure KVM Touchscreen Controller
  KVSC-16
  Stereo Audio Cable - 3.5-mm - M/M, 1.5m
Stereo Audio Cable - 3.5-mm
  EJ110-0005
Rack/Mount Kit
  Rackmount Kit for 2-Port Secure KVM Switch
Rackmount Kit for 2-Port Secure KVM Switch
  SKVM-BRKT2P
  Rackmount Kit for Dual-Head 4-Port Secure KVM Switch
Rackmount Kit for Dual-Head 4-Port Secure KVM Switch
  SKVM-BRKT4PDH

Security Highlights:
Each port uses its own isolated data channel to ensure that data is not leaked between secure ports and outside world.
Mechanical, electrical, and optical isolation to prevent hacking and data leaks in environments where security is critical.
Protected firmware keeps intruders from re-programming or reading the firmware.
Keyboard/internal cache wiping.
Chassis intrusion protection.
Equipped with internal anti-tamper switches and Tamper-evident seals.

NIAP PP3.0 certified Secure KVM Switches from Black Box offer a secure desktop access solution to safeguard against cyber intrusion for government/military agencies, finance, healthcare, traffic control and educational facilities alike. The Black Box NIAP PP3.0 certified Secure KVM Switches provide ultra-secure switching between up to 16 standard personal/portable computers, servers or thin clients running operating systems such as Windows or Linux from an ergonomic workspace.

Broad Secure KVM Switch portfolio for every application and every industry
The Secure KVM Switch range from Black Box is one of the widest in the industry. Different applications and industry have differing requirements of centralized computer access. This portfolio has a suitable solution for every configuration:
  • KVM Switches with 2-,4, 8- or 16- computer ports
  • 4K digital and analogue video options featuring consoles with up to four monitors
  • Single User or Matrix Switches for up to four users
  • KM switches with dedicated computer-monitor connections and mouse switching
  • 4-Port Multiviewer KVM Switch featuring a full screen and a 4-in-1 windowing display
  • Single-Port KVM Protector

Secure KVM Switches for a single user console with two DisplayPort monitors

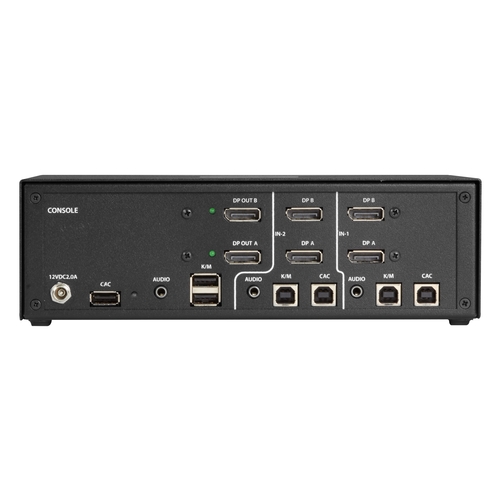

The Secure KVM Switches -featured on this page- support one user console with two DisplayPort monitor (or HDMI monitor through adapter), USB keyboard and mouse, audio from the connected computer and optional CAC-support. Choose from models with two or four ports. All feature tactile front-panel buttons with LED indicators to change the active computer connection in simple and safe way while eliminating the need for unsecure hotkeys.

Why secure KVM
Connecting peripherals such as keyboard, mouse and speakers to a PC introduces potential data leakage and hacking risks. There are no filters nor is there data detection and protection features between the PC and peripherals using traditional KVM Switches.

Tested to the latest NIAP PP3.0 security profile
Secure KVM Switches are designed for use in secure defense and intelligence applications where sensitive data must be protected. The Secure KVM Switches from Black Box are going to be NIAP PP 3.0 certified and equipped with the highest security features that meet today’s Information Assurance safe control standards. The switches contain unique hardware configurations that prevent data leakage between PCs and connected peripherals that eliminates any potential cyber threat.

Multi-level security for strict information assurance
An absolute isolation of the mechanical, electrical and optical signals including air gapping prevents hacking and data leakage between the ports and outside world. Each port of the Secure KVM Switch uses its own isolated data channels. Upfront switching on another target computer, the KVM switch erases the internal cache and keyboard data to ensure that no residual data remains in the channel. The fixed secure firmware/ROM is non-reprogrammable and keeps intruders from reading, reprogramming via unwanted firmware upgrades, or physically removing.

Always on Tamper-proof design
The Secure KVM Switches feature active Anti-tamper switches, external hologram tamper-evident seals and a long-life internal Anti-tampering battery. If the cover is removed from the chassis, the KVM Switch becomes inoperable to protect against any attempt of physical intrusion.

Common Access Card (CAC Support)
The Secure KVM Switches are optionally available with a fully advanced and configurable CAC port that supports CAC devices like smart cards and biometric readers. Even further, authenticated admins can register and assign specific peripheral devices to the CAC port. Users can then switch the assigned device along with the KVM switching of the connected computers.

Ultra-fast Switching
Secure Video & Aux emulation allows for ultra-fast switching and restricts discovery of newly connected displays during switching operations this prevents unwanted and unsecure data from getting transmitted between the computers and the display. This shields systems from potential vulnerabilities

4K digital video with secure EDID learn
NIAP PP3.0 certified Secure KVM Switches with DisplayPort interface support native resolutions up to 4K UHD 3840 x 2160 at 30Hz. They support consoles with two monitors and computers with each two graphic outputs. The connection of HDMI devices requires an optional HDMI to DVI adapter. Upon activation, the KVM switch will quickly and automatically learn or recalls EDID information for specific monitors.
