EVNDPVGA-MF-R4: Video Adapter, DisplayPort to VGA, M/F, 20 cm

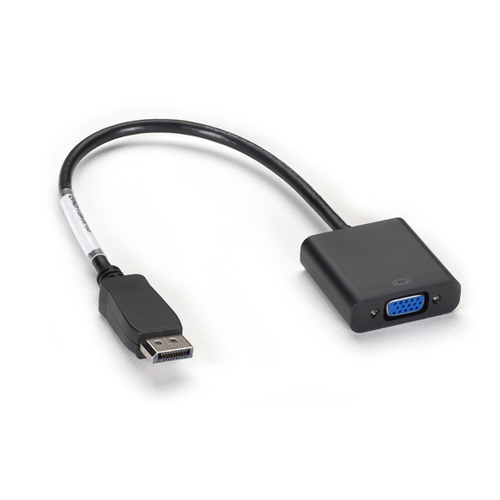

Photo may vary from actual product


DisplayPort to VGA Adapter


Convert signals from DisplayPort to VGA.


  • Transmit both digital video and audio in one cable.
  • Supports video with up to 1080p resolution plus digital audio.
  • Version 1.1 supports 10.8 Gbps.
  • The video source is on the DisplayPort side.
  • Supports color depths of 6, 8, 10, 12 and 16 bits and two-way connectivity.
  • Powered by the interface and requires no separate power supply.
  • 32 AWG adapter cable is 17 bis 20 cm long (7" bis 8").
  • Compact latching connectors (DisplayPort Male to HD15 female).
  • Warranty: 25 Year Double Diamond™ Warranty (Standard)

  Product       Code
Video Adapter
DisplayPort to VGA
M/F

20 cm
  DisplayPort to VGA Adapter
DisplayPort to VGA Adapter
  EVNDPVGA-MF-R4

Cable Diameter — 0.71 cm (0.28")
Color — Black
Connectors — (1) DisplayPort M; (1) VGA F
Jacket — PVC
Shielding — Foil tape
Wire Gauge — 32 AWG

  • NOTE1: The video source is on the DisplayPort side.

  • NOTE2: The user may have to adjust video card settings.
