Store home > Cables > Fibre Patch Panels > Modular > Rackmount Fiber Shelf, Pull-Out Tray, 1U
JPM427A-R2
Photo may vary from actual product

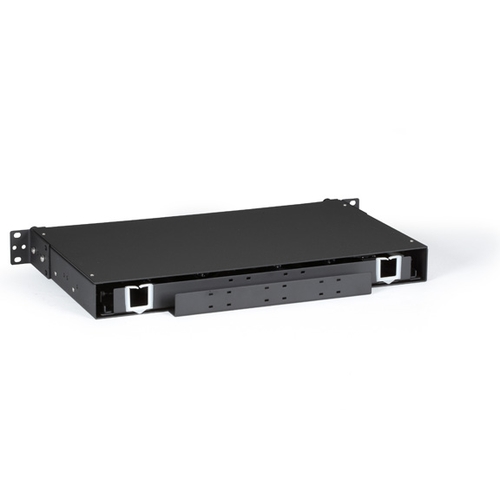

Rackmount Fiber Shelf, Pull-Out Tray, 1U
Rackmount Fiber Shelf, Pull-Out Tray, 1U
Rackmount Fiber Shelf, Pull-Out Tray, 1U


Rackmount Fiber Shelf, Pull-Out Tray, 1U


A compact fiber shelf that conveniently slides out for easy fiber access.

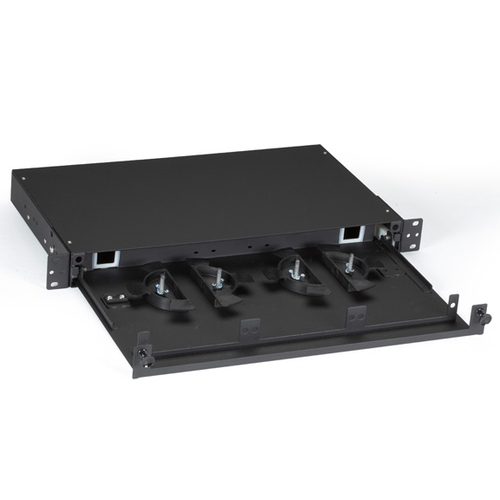

  • To access cables in the enclosure, simply pull out the tray.

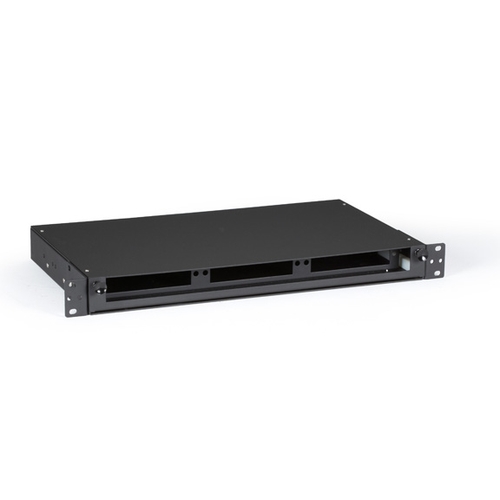

  • Three slots accept three snap-in fiber adapter panels.
  • The shelf can also hold two Black Box® Mini Splice Trays.
  • Features two separate Kevlar® clamps to secure the fiber trunk to the enclosure.
  • Rail stops prevent the tray from being pulled out too far and damaging your fiber splices.
  • Rackmount ears support both 19" and 23" widths and can be front or center mounted.
  • Includes two sets of cable distribution rings to manage fiber trunks fed from the back.
  • Rings can be easily repositioned to match your cabling requirements.
  • Optional fiber tray splicing is also supported.
  • To lock tray, simply push two buttons into place after closing.
  • 16-gauge, cold rolled steel enclosure.
  • Warranty: 25 Year Double Diamond™ Warranty (Standard)

  Product       Code


Rackmount Fiber Shelf, Pull-Out Tray, 1U

Rackmount Fiber Shelf, Pull-Out Tray, 1U
  JPM427A-R2

Accessories

  Product     Code

  OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors - (12) MTP/MPO to (6) LC Duplex
OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors
  FOCA20M3-1MP12-12LC
  OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors - (24) MTP/MPO to (12) LC Duplex
OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors
  FOCA20M3-1MP24-24LC
  OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors - 2x (12) MTP/MPO to (12) LC Duplex
OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors
  FOCA20M3-2MP12-24LC
  Fiber Adapter Panels - Low Density Multimode, 6 Duplex LC, Beige
Fiber Adapter Panels
  JPM455B-R2
  Fiber Adapter Panels - High Density Mulitmode, 12 Duplex LC, Beige
Fiber Adapter Panels
  JPM467B-R2
  Fiber Adapter Panels - High Density Singlemode, 12 Duplex LC, Blue
Fiber Adapter Panels
  JPM467C-R2
  Fiber Adapter Panels - Low Density Multimode, 3 Duplex ST, Beige
Fiber Adapter Panels
  JPM450B
  Fiber Adapter Panels - Low Density Singlemode, 3 Duplex ST, Blue
Fiber Adapter Panels
  JPM450C
  Fiber Adapter Panels - Low Density Multimode, 3 Duplex SC, Beige
Fiber Adapter Panels
  JPM451B
  Fiber Adapter Panels - Low Density Singlemode, 3 Duplex SC, Blue
Fiber Adapter Panels
  JPM451C
  Fiber Adapter Panels - Low Density Singlemode, 6 Duplex LC, Blue
Fiber Adapter Panels
  JPM455C-R2
  Fiber Adapter Panels - Low Density 10G Multimode, 6 Duplex LC, Aqua
Fiber Adapter Panels
  JPM456C
  Fiber Adapter Panels - High Density Mulitmode, 6 Duplex ST, Beige
Fiber Adapter Panels
  JPM460B
  Fiber Adapter Panels - High Density Singlemode, 6 Duplex ST, Blue
Fiber Adapter Panels
  JPM460C
  Fiber Adapter Panels - High Density Singlemode, 6 Duplex SC, Blue
Fiber Adapter Panels
  JPM461C
  Fiber Adapter Panels - High Density Mulitmode, 6 Duplex SC, Beige
Fiber Adapter Panels
  JPM463B
  Fiber Adapter Panels - High Density 10G Multimode, 12 Duplex LC, Aqua
Fiber Adapter Panels
  JPM468C
  Fiber Adapter Panels - Blank Panel, No Connector, Black
Fiber Adapter Panels
  JPM480A
  FO Splice Tray - 24-Strand
FO Splice Tray
  JPM440A

Dimensions — 4.5H x 43W x 26.4D cm (1.8"H x 16.9"W x 10.4"D)
Weight — 6.5 kg (14.3 lb.)
