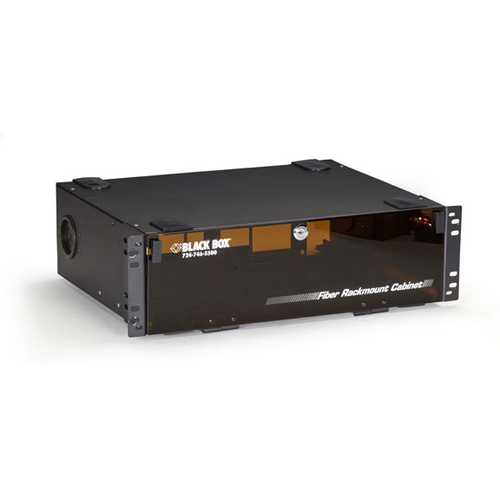

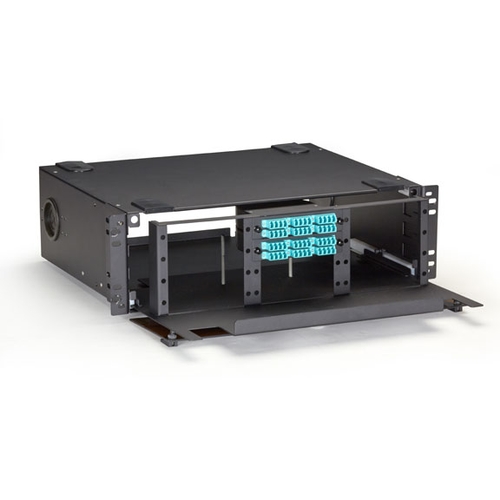

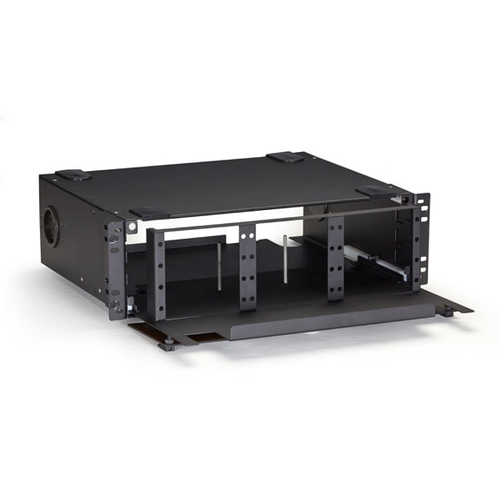

JPM406A-R6: Panel, for 12 Adapter Panels, 3U
Photo may vary from actual product

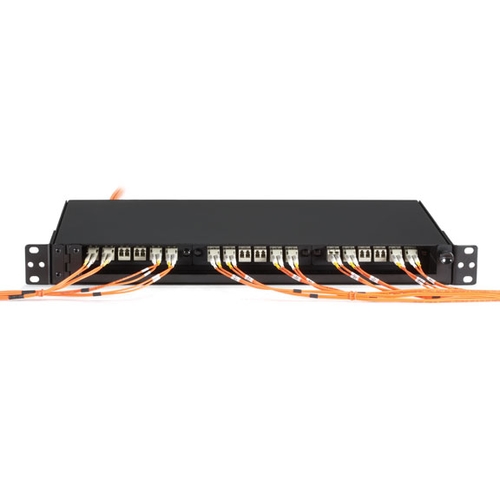

JPM407A-R5: Shelf, for 3 Adapter Panels, 1U
JPM407A-R5: Shelf, for 3 Adapter Panels, 1U
JPM406A-R6: Panel, for 12 Adapter Panels, 3U
JPM406A-R6: Panel, for 12 Adapter Panels, 3U
JPM407A-R5: Shelf, for 3 Adapter Panels, 1U

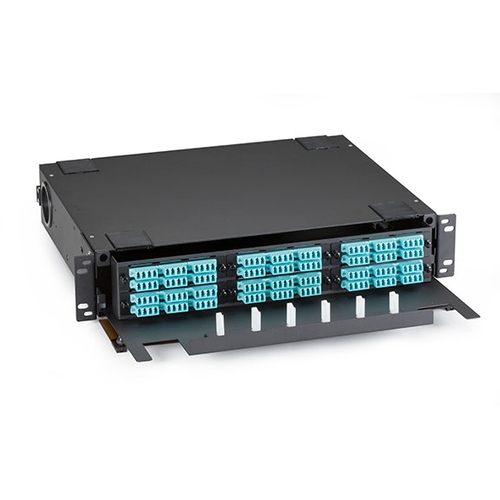

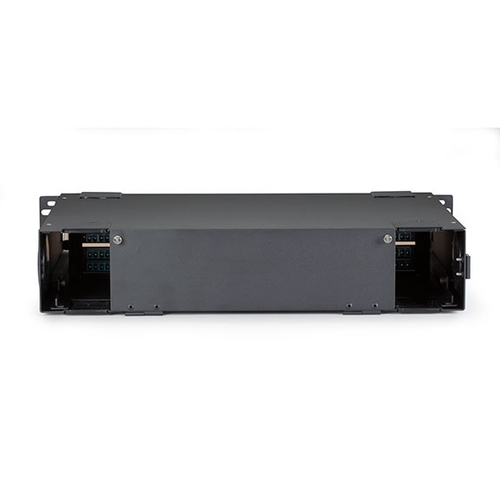

JPM418A-R5: Panel, for 6 Adapter Panels, 2U
JPM418A-R5: Panel, for 6 Adapter Panels, 2U
JPM418A-R5: Panel, for 6 Adapter Panels, 2U


Modular FO Patch Panel


Mix and match fiber for your workgroup.


  • For 19" or 23" rackmount fiber applications.
  • Snap in the appropriate adapter panels.
  • Choose various connector types upon your needs.
  • Warranty: 25 Year Double Diamond™ Warranty (Standard)

  Product       Code
Panel
for 6 Adapter Panels

2U
  Modular FO Patch Panel
Modular FO Patch Panel
  JPM418A-R5
for 12 Adapter Panels

3U
  Modular FO Patch Panel
Modular FO Patch Panel
  JPM406A-R6
Shelf
for 3 Adapter Panels

1U
  Modular FO Patch Panel
Modular FO Patch Panel
  JPM407A-R5

Accessories

  Product     Code

  Fiber Adapter Panels - Low Density Multimode, 3 Duplex ST, Beige
Fiber Adapter Panels
  JPM450B
  Fiber Adapter Panels - Low Density Singlemode, 3 Duplex ST, Blue
Fiber Adapter Panels
  JPM450C
  Fiber Adapter Panels - Low Density Multimode, 3 Duplex SC, Beige
Fiber Adapter Panels
  JPM451B
  Fiber Adapter Panels - Low Density Singlemode, 3 Duplex SC, Blue
Fiber Adapter Panels
  JPM451C
  Fiber Adapter Panels - Low Density Multimode, 6 Duplex LC, Beige
Fiber Adapter Panels
  JPM455B-R2
  Fiber Adapter Panels - Low Density Singlemode, 6 Duplex LC, Blue
Fiber Adapter Panels
  JPM455C-R2
  Fiber Adapter Panels - Low Density 10G Multimode, 6 Duplex LC, Aqua
Fiber Adapter Panels
  JPM456C
  Fiber Adapter Panels - High Density Mulitmode, 6 Duplex ST, Beige
Fiber Adapter Panels
  JPM460B
  Fiber Adapter Panels - High Density Singlemode, 6 Duplex ST, Blue
Fiber Adapter Panels
  JPM460C
  Fiber Adapter Panels - High Density Singlemode, 6 Duplex SC, Blue
Fiber Adapter Panels
  JPM461C
  Fiber Adapter Panels - High Density Mulitmode, 6 Duplex SC, Beige
Fiber Adapter Panels
  JPM463B
  Fiber Adapter Panels - High Density Mulitmode, 12 Duplex LC, Beige
Fiber Adapter Panels
  JPM467B-R2
  Fiber Adapter Panels - High Density Singlemode, 12 Duplex LC, Blue
Fiber Adapter Panels
  JPM467C-R2
  Fiber Adapter Panels - High Density 10G Multimode, 12 Duplex LC, Aqua
Fiber Adapter Panels
  JPM468C
  Fiber Adapter Panels - Blank Panel, No Connector, Black
Fiber Adapter Panels
  JPM480A
  OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors - (12) MTP/MPO to (6) LC Duplex
OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors
  FOCA20M3-1MP12-12LC
  OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors - 2x (12) MTP/MPO to (12) LC Duplex
OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors
  FOCA20M3-2MP12-24LC
  OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors - (24) MTP/MPO to (12) LC Duplex
OM3 50-Micron Multimode Fiber Optic Cassettes, MTP-style connectors
  FOCA20M3-1MP24-24LC
  OM3 HD Fiber Optic Cassette, (3x12) Strand MTP/MPO to (36) LC - Cassette
OM3 HD Fiber Optic Cassette, (3x12) Strand MTP/MPO to (36) LC
  FOCA20M3-3MP12-36LC
  FO Splice Tray - 24-Strand
FO Splice Tray
  JPM440A
  FO Splice Tray - 12-Strand
FO Splice Tray
  JPM441A

Rackmount Fibre Panels
Satisfy your requirements for maximum flexibility and high-density terminations with these cabinets for your 19" or 23" rackmount fiber applications. Just snap in up to 6, 9, or 12 adapter panels.
Smoked-plastic front covers protect your patch cords from dust and dirt, and make it easy to view connections. And because the front covers are lockable, you can keep your panel connections secure. A removable rear cover makes patch cords and pigtails accessible.
All models come with adjustable rackmount brackets for easy installation.

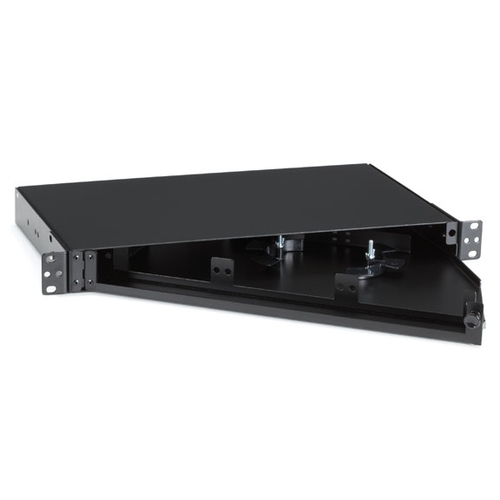

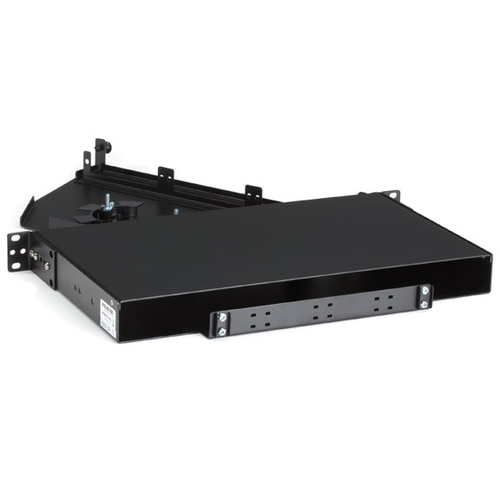

Rackmount Fiber Shelf
With this shelf, you can organize and protect fiber connections and splice trays in your 19" or 23" rackmount fiber applications. This shelf is particularly useful in cabinets and racks where little space is available. It accepts three snap-in Adapter Panels or MPO Cassettes for connections. The cable punchouts are aligned for easy stacking of shelves. Plus, fiber Kevlar clamps on the outside rear hold the fiber in place as it enters the box.
The adapter panels are recessed horizontally in the swing-out tray for superior patch cord protection. A splice tray stud enables you to install pigtail splice trays.
The Rackmount Fiber Shelf comes with rackmount brackets that are adjustable for mounting in cabinets and two-post racks. They're set for 19" racks but can be reversed for use in 23" racks.
