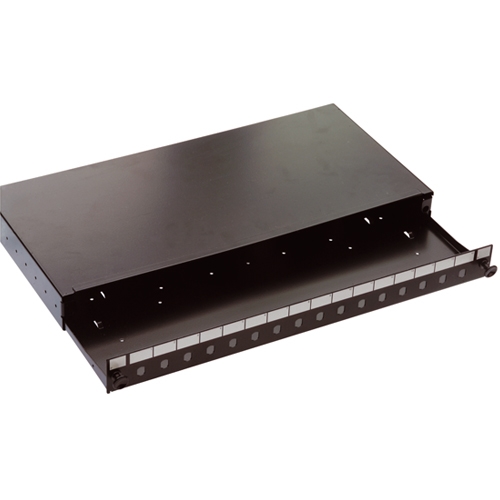

Modular Fibre Patch Panel 1U
Photo may vary from actual product


Modular Fibre Patch Panel 1U


Multi functional fibre panel with easy installation & maintenance access


  • Up to 24 (JEP005F, 48) fibres in 1U
  • Clear Write-on labelling area.
  • Ideal 45° open angle work area with pre-formed tie-downs.
  • On both sides with knock-out cable openings.
  • Accepts loose tube, distribution and pre terminated cables.
  • Various adapters available.
  • Fits standard 19”.

  Product       Code
Type A

Adapter
  Adapter Type A, ST Multimode
Adapter Type A, ST Multimode
  FOE401

Adapter
  Adapter Type A, FC Single-mode
Adapter Type A, FC Single-mode
  FOE404 Last Time Buy
Type B

Adapter
  Adapter Type B, SC Simplex Multimode (Beige)
Adapter Type B, SC Simplex Multimode (Beige)
  FOE501 Last Time Buy

Adapter
  Adapter Type B, SC Simplex Single-mode APC (Green)
Adapter Type B, SC Simplex Single-mode APC (Green)
  FOE503 Last Time Buy

Adapter
  Adapter Type B, LC Duplex Multimode (Beige)
Adapter Type B, LC Duplex Multimode (Beige)
  FOE505

Adapter
  Adapter Type B, LC Duplex Single-mode (Blue)
Adapter Type B, LC Duplex Single-mode (Blue)
  FOE506

Adapter
  Adapter Type B, E-2000 Single-mode APC (Green)
Adapter Type B, E-2000 Single-mode APC (Green)
  FOE513
Type C

Adapter
  Adapter Type C, SC Duplex Multimode (Beige)
Adapter Type C, SC Duplex Multimode (Beige)
  FOE601

Adapter
  Adapter Type C, SC Duplex Single-mode (Blue)
Adapter Type C, SC Duplex Single-mode (Blue)
  FOE602

Adapter
  Adapter Type C, LC Quad Multimode (Beige)
Adapter Type C, LC Quad Multimode (Beige)
  FOE604

Adapter
  Adapter Type C, Hybrid Duplex ST-SC Multimode (Beige)
Adapter Type C, Hybrid Duplex ST-SC Multimode (Beige)
  FOE610
"Last Time Buy" indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.

These robust 1U sliding patch panels are designed to house all current available adapters like ST, FC, SC, LC, MTRJ and E-2000 for Multimode and Single-mode applications. The panels offer a flexible, fulti functional solution which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

The tray is locked in place with two, simple to operate plastic catches. When fully extended the tray can be lowered to a 45 degrees angle and will provide the perfect working platform for installation or maintenance.
The panel offers four cable entry points for loose tube, tight buffer, pre terminated and steel tape armoured cable. In addition, each panels has integrated strength member tie positions also with the additional removable plate at the rear of the panel allows the installation of steel tape armoured cable.

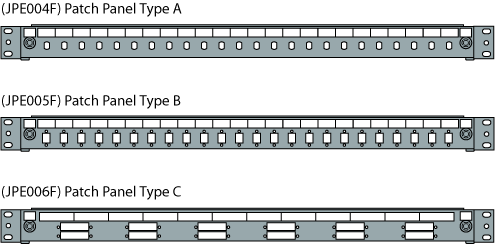

Use JPE004F for fibre links with ST or FC connectors. JPE005F takes SC, LC and E2000 connections, while JPE006F is designed to house Quad LC, Duplex SC or SC/ST hybrid connections

Appilcations:
  • Data centres, premise installations, telecommunication networks
  • Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  • Data communication
  • Indoor applications
