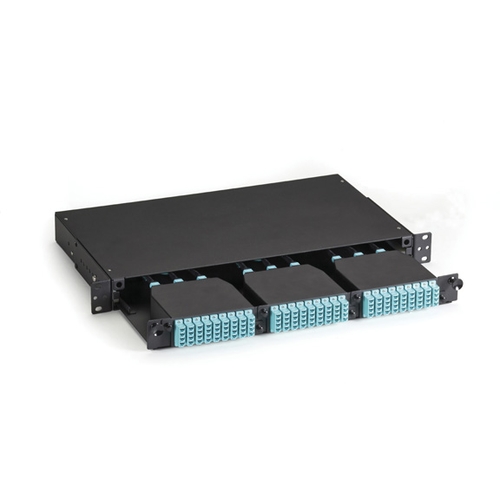

FOEN50HD-3H-1U: Enclosure
Photo may vary from actual product

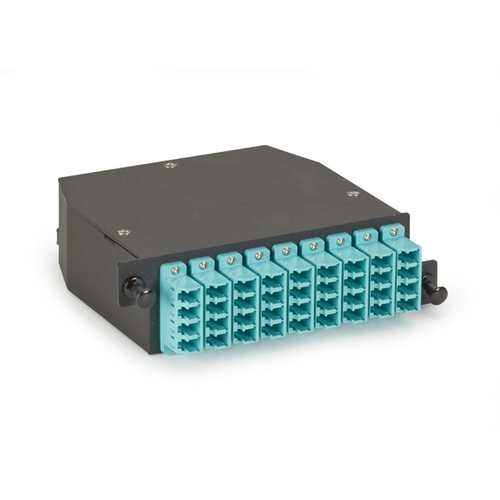

FOCA20M3-3MP12-36LC: Cassette
FOCA20M3-3MP12-36LC: Cassette


HD Fiber Optic Enclosure 1U


Make 108 high-density LC fiber connections in only 1U


  • Slide-out tray makes high-density data center connections easy.
  • To access cables in the enclosure, simply pull out the tray.
  • Three slots accept LC Fiber Cassettes.
  • Adjustable-depth mounting enables you to recess the enclosure to protect LC connectors from enclosure door damage.
  • Recessed mounting also enables you to better dress LC zipcords.
  • Rail stops prevent the tray from being pulled out too far and damaging fiber splices.
  • 16-gauge, cold-rolled steel construction.
  • Cassettes feature (36) LC connectors (18 duplex pairs) on the front and (3) 12-strand MTP® MPO-style connectors, which are wired to method A on the back.
  • Warranty: 25 Year Double Diamond™ Warranty (Standard)

  Product       Code


Cassette
  OM3 HD Fiber Optic Cassette, (3x12) Strand MTP/MPO to (36) LC
OM3 HD Fiber Optic Cassette, (3x12) Strand MTP/MPO to (36) LC
  FOCA20M3-3MP12-36LC

Enclosure
  HD Fiber Optic Enclosure 1U
HD Fiber Optic Enclosure 1U
  FOEN50HD-3H-1U
NOTE: The enclosure comes unloaded. Use it with the HD Fiber Cassettes.

Enclosure
Connector Style — Supports up to (3) HD Fiber Cassettes
Size — 4.6H x 48.3W x 27.4D cm (1.8"H x 19"W x 10.8"D)
Weight — 4.91 kg

Cassette
Connectors —
Front: (36) LC in (9) quad couplers
Back: (3) MTP-style/MPO Male (12-strand) with PINS
MTP Insertion Loss — .75 dB maximum at 850/1300 nm
LC Insertion Loss — .30 dB maximum at 850/1300 nm
Size — 3.9H x 13.5W x 12.4D cm (1.52"H x 5.3"W x 4.9"D)
Weight — 0.37 kg

TAA compliant — YES
