Store home > Cables > Copper Patch Cables > CAT5e > GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)
GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)
Photo may vary from actual product
GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)
GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)
GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)

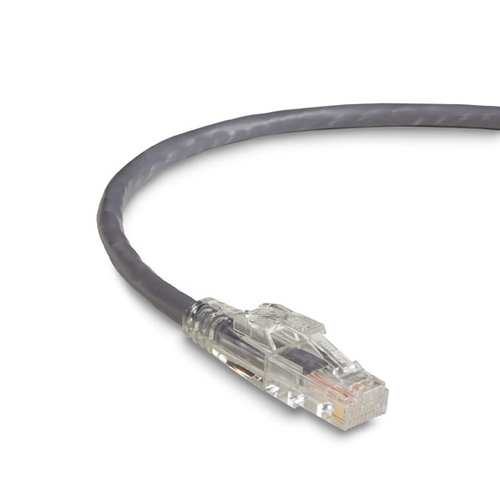

C5EPC60-GY-03M: Gray, 3m


GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)


Premium CAT5e Cables with Lockable Connectors Give You the Ability to Lock Down Critical Network Ports


  • Choose between two levels of lockability, or use as a standard snagless connector.
  • GigaBase 3 Premium cable constructed to exceed industry standards.
  • Cable Tested to 350 MHz, surpassing 100-MHz CAT5e standard.
  • Cabling component verified to ANSI/TIA-568-C.2.
  • 50-micron gold-plated contacts provide superior conductivity.
  • Connector designed for an insertion and extraction life of 750 cycles.
  • This cable offers superior near-end crosstalk (NEXT) compared to standard CAT5e cable.
  • Snagless boots prevent connector damage due to snags during installation.
  • LSZH rated jacketing limits emission of smoke and corrosive gases in the event of a fire.

  Product       Code
Gray

3m
  GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)
GigaBase® 3 CAT5e 350-MHz Ethernet Patch Cable with Locking Connectors – LSZH, Snagless, Unshielded (UTP)
  C5EPC60-GY-03M

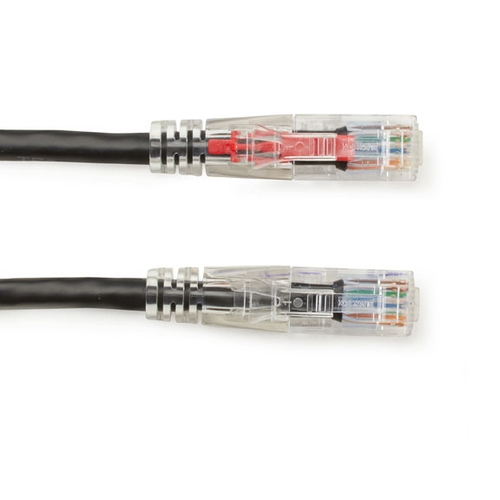

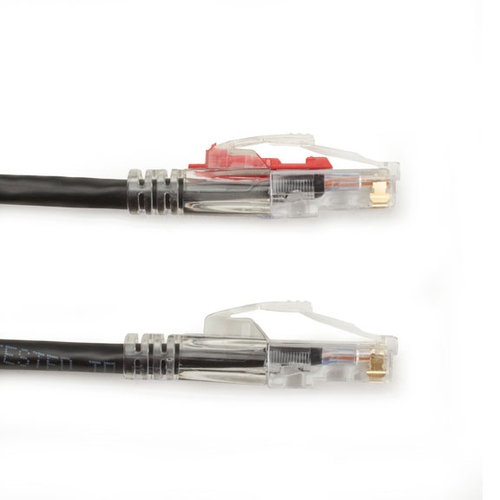

Black Box GigaBase 3 Premium LSZH CAT5e patch cables with locking connectors give you the ability to lock down critical network ports, offering three levels of security to choose from:
Red Pin: Locked—

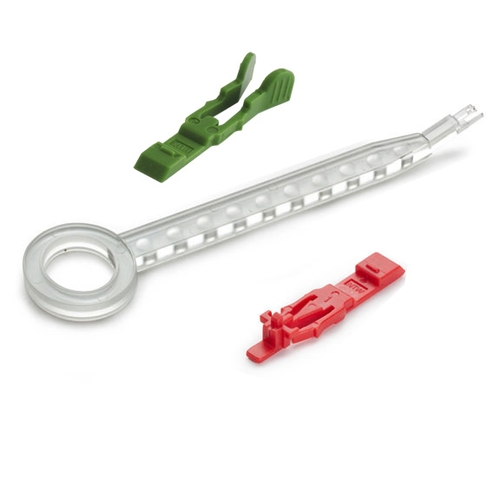

Prevent unauthorized access and tampering of mission-critical and publicly accessible ports in government offices, lobbies, retail establishments and more. To lock down a port, a Red Locking pin inserts into the patented LockPORT boot of the cable. In order for the pin to be removed and the cable disconnected from its port, it must be released with a Removal Tool (KEY-CL). The Red Locking pins can be purchased in packs of 10 (LP50-RD-10PAK) and 25 (LP50-RD-25PAK).

Green Pin: Secured—
Prevent accidental disconnects in the office, manufacturing and industrial applications, and more. To secure a port, a Green Locking pin inserts into the cable’s LockPORT boot. This pin features butterfly tabs that can be pressed with fingers to release it, and does not require a Removal Tool. The Green Locking pins can be purchased in packs of 10 (LP40-GN-10PAK) and 25 (LP40-GN-25PAK).

No Pin: Protected—
Use without locking pins, the same as you would an ordinary snagless connector. Even without the pins, the rugged, hard-polymer LockPORT boot and plug are integrated to provide increased strength in comparison with standard connectors.

Premium performance—
On top of their secure, lockable design, Black Box GigaBase 3 Premium CAT5e patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Fast Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 350-MHz and 1-Gbps performance, these cables exceed the 100-MHz CAT5e spec, greatly reducing impedance, structural return loss and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity, and features LSZH rated jacketing that limits emission of smoke and corrosive gases in the event of a fire. These cables have connectors designed for an insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. Available in a variety of lengths and colors, Black Box’s GigaBase 3 line of cabling gives you the flexibility to build your install however you want.
